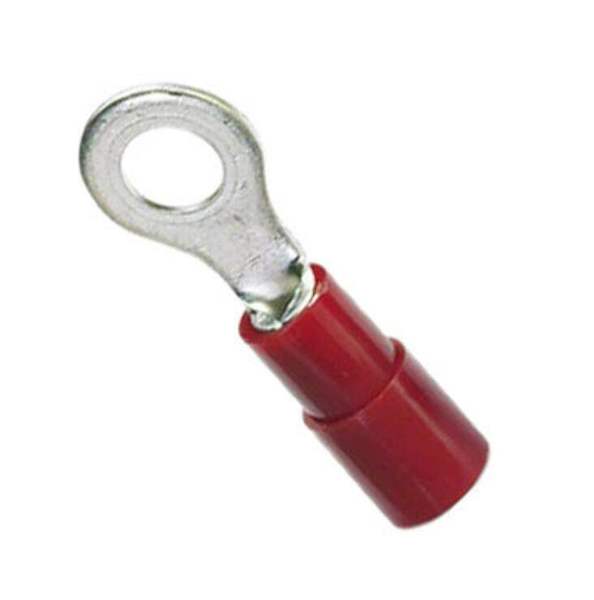

3240016

Part No 3240016
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 16-20AWG M3 CRIMP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204384-3240016
Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminals Ring Connectors
Series CLIPLINE
Package CLIPLINEBulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M3 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.217" (5.50mm)
Length - Overall 0.689" (17.50mm)
Ultra Librarian 3D Model Ultra Librarian 3240016 CAD Model

Description

Product Features:
● The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
●The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system
