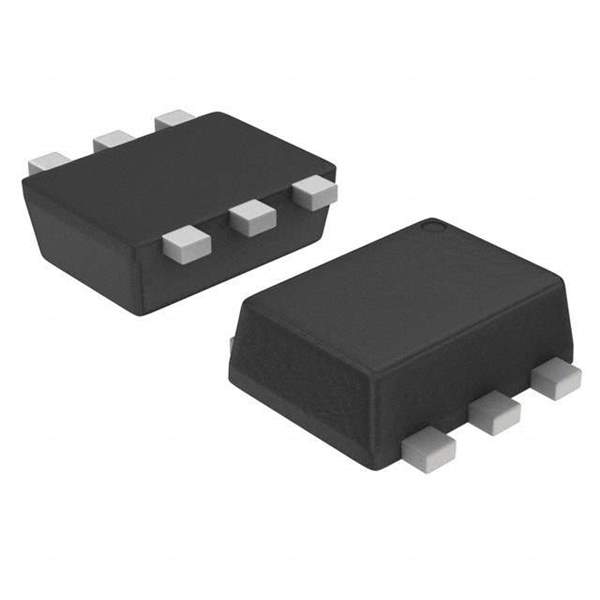

BAT54CTB6_R1_00001

Part No BAT54CTB6_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description SURFACE MOUNT SCHOTTKY DIODE ARR / Diode Array 2 Pair Common Cathode Schottky 30 V 200mA (DC) Surface Mount SOT-563, SOT-666
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Series BAT54TB6
Package Tape & Reel
Diode Configuration 2 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 600 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature - Junction -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case SOT-563, SOT-666
Supplier Device Package SOT-563
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 3757-BAT54CTB6_R1_00001CT,3757-BAT54CTB6_R1_00001TR,3757-BAT54CTB6_R1_00001DKR
Standard Package 4,000
Win Source Part Number 1048240-BAT54CTB6_R1_00001
Ultra Librarian 3D Model Ultra Librarian BAT54CTB6_R1_00001 CAD Model

Description

The BAT54CTB6_R1_00001 is a Schottky diode array from Panjit International Inc.

  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 600mV @ 100mA
  • Reverse Leakage Current: 2µA @ 25V
  • Average Rectified Current: 200mA per diode
  • Package: SOT-563 package
  • Operating Temperature Range: -55°C to 125°C
  • Diode Configuration: 2 pair common cathode diode configuration
  • ROHS3 Compliant: ROHS3 compliant
  • ECCN: EAR99
