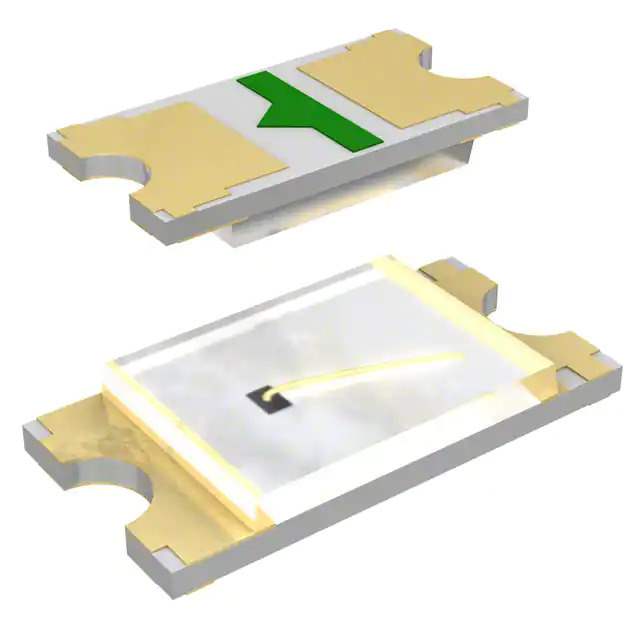

LNJ237W82RA Panasonic LNJ237W82RA Real Image
LNJ237W82RA Panasonic LNJ237W82RA Real Image
Same model may have multiple batches, images only for reference.

LNJ237W82RA

Part No LNJ237W82RA
Manufacturer Panasonic
Catalog LED Indication - Discrete
Description LED RED ESS II SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Millicandela Rating 16mcd
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 5mA
Mounting Type Surface Mount
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 0603 (1608 Metric)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.25mm
Base Product Number LNJ237
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 843420-LNJ237W82RA
Ultra Librarian 3D Model Ultra Librarian LNJ237W82RA CAD Model

Description

The 843420-LNJ237W82RA is a discrete LED indication component manufactured by Panasonic. Please note that this product is now obsolete and may not be readily available.

  • Category: Optoelectronics - LED Indication - Discrete
  • Package: tape and reel
  • Size/Dimension: 1.60mm L x 0.80mm W
  • Height: 0.25mm
  • Standard Package: 5,000 pieces
  • LED Color: red
  • Millicandela Rating: 16mcd
  • Forward Voltage (Vf): 1.95V
  • Test Current: 5mA
  • Dominant Wavelength: 630nm
  • Peak Wavelength: 645nm
  • Package/Case Size: 0603 (1608 Metric)
  • Lens Style: rectangle with a flat top
  • Lens Size: 1.10mm x 0.80mm
  • ECCN Code: EAR99
