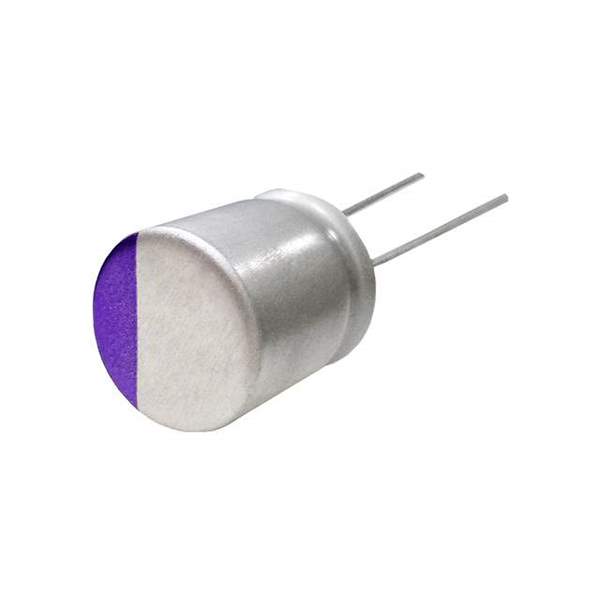

6SEPC680M Real Image
Same model may have multiple batches, images only for reference.

6SEPC680M

Part No 6SEPC680M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 680UF 20% 6.3V T/H / Radial Lead Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 680μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 7mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications Use For General
Ripple Current at Low Frequency 332mA at 120Hz
Ripple Current at High Frequency 6.64A at 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804439-6SEPC680M
Ultra Librarian 3D Model Ultra Librarian 6SEPC680M CAD Model

Description

The Panasonic Electronic Components 804439-6SEPC680M is a bulk-packaged polymer capacitor from Panasonic Electronic Components.

  • Capacitance: 680μF
  • Tolerance: ±20%
  • Voltage Rating: 6.3V
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: 7mOhm
  • Surface Mount Land Size: -
  • Temperature Range: -55°C ~ 105°C
  • Dimension: 0.394" Dia (10.00mm)
  • Manufacturer Package: Radial, Can
  • Height - Seated (Maximum): 0.512" (13.00mm)
  • Lifetime @ Temp: 5000 Hrs @ 105°C
  • Ripple Current at Low Frequency: 332mA @ 120Hz
  • Ripple Current at High Frequency: 6.64A @ 100kHz
