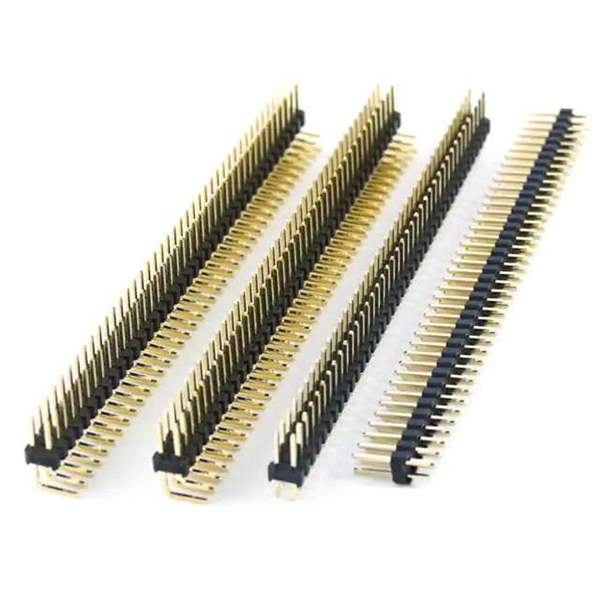

2011-2X03G00SB Real Image
Same model may have multiple batches, images only for reference.

2011-2X03G00SB

Part No 2011-2X03G00SB
Manufacturer Oupiin
Catalog Rectangular Connectors
Description PIN HEADER, DOUBLE ROW 6 PIN STR / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Oupiin
Series 2011
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.457" (11.60mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post Flash
Base Product Number 2011
Standard Package 1 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905828-2011-2X03G00SB
Ultra Librarian 3D Model Ultra Librarian 2011-2X03G00SB CAD Model

Description

The 905828-2011-2X03G00SB is a header connector from Oupiin.

  • Series: 2011
  • Application: Board-to-Board
  • Number of Positions: 6
  • Number of Rows: 2
  • Contact Gender: Male
  • Contact Material: Brass
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold Plated
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Overall Length: 0.457" (11.60mm)
  • Insulation Height: 0.098" (2.50mm)
  • Operating Temperature Range: -40°C to 105°C
