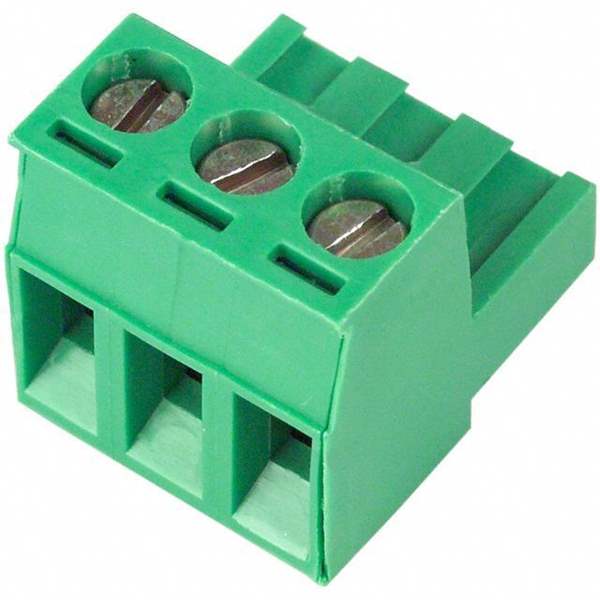

Same model may have multiple batches, images only for reference.

ED950/3

Name: ED950/3
Brand: On Shore Technology Inc.
SKU: 773656
Availability: InStock
Rating: 4.94 (5 reviews)

Get a Quote

Part No	ED950/3
Manufacturer	On Shore Technology Inc.
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 3POS STR 5MM / Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 15A
Datasheet	ED950/3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	On Shore Technology Inc.
Series	ED950
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.197" (5.00mm)
Plug Wire Entry	180°
Termination Style	Screw
Mounting	Free Hanging (In-Line)
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-22 AWG
Wire Gauge or Range - mm2	2.5mm2
Color	Green
Operating Temperature Range	-30°C ~ 105°C
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5 Nm (4.4 Lb-In)
Wire Strip Length	6mm
Contact Material	Copper
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
Win Source Part Number	773656-ED950/3
Popularity	Medium
Supply and Demand Status	Balance
Family Name	ED950
Introduction Date	September 02, 2004
ECCN	EAR99
Country of Origin	Germany
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian ED950/3 CAD Model

Alternative Products

Description

The On Shore Technology Inc. ED950/3 connector is a high-quality electronic component that is designed to deliver reliable performance in a wide range of applications.

Pitch: 0.197" (5.00mm)
Positions per Level: 3
Termination Style: Screw
Wire Gauge: 12-22 AWG
Retention Latches: Yes
Housing Material: Polyamide (PA)
Packaging: Bulk
Pieces per Package: 1
