The RB751S40T1G is a high-performance Schottky barrier diode designed by ON Semiconductor, a leader in energy-efficient innovations. This diode is optimized for very low forward voltage drop with a moderate leakage. The low forward voltage drop and fast switching make it ideal for high-efficiency applications.

Key Features

• Low Forward Voltage: The RB751S40T1G boasts a low forward voltage drop, typically just 0.37V at 1mA, which enhances system efficiency, particularly in low-voltage applications.
• High Current Capacity: This diode can handle a continuous forward current of 30mA, making it suitable for high-density circuit designs.
• Fast Switching Speed: With its Schottky barrier design, the RB751S40T1G offers fast switching capabilities, which is critical for high-frequency operations.

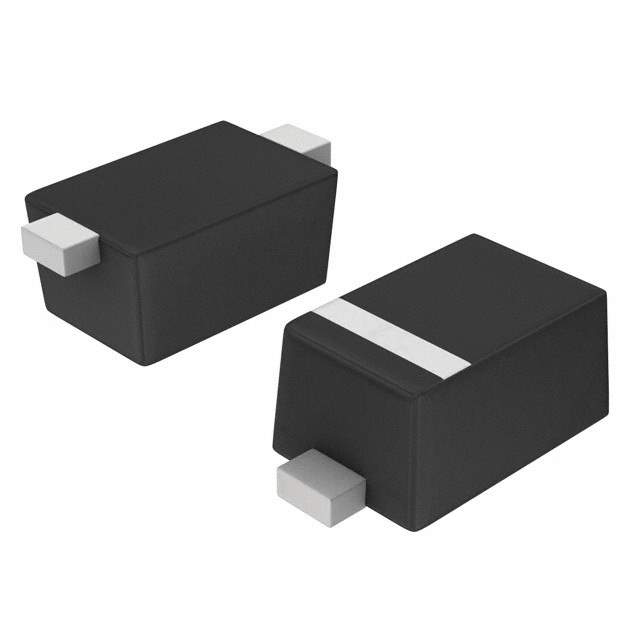

• Small Package Size: Encased in a SOD-523 package, the device is incredibly compact, allowing for high-density PCB layouts and miniaturization of the end product.
• Low Leakage Current: It maintains a low leakage current of 2μA at 40V, which contributes to the overall energy efficiency of the system it's employed in.
• Reverse Voltage: This diode has a maximum reverse voltage of 40V, providing a good margin for overvoltage transients.
• RoHS Compliant: The RB751S40T1G meets the Restriction of Hazardous Substances (RoHS) directive, making it suitable for use in environmentally sensitive applications.

Applications

The ON Semiconductor RB751S40T1G is versatile and can be used in a wide range of applications. Its features make it particularly well-suited for:

• Power supply rectification
• Voltage clamping
• Protection circuits
• Switching power supplies
• DC-DC converters
• Battery-powered devices
• Charge and discharge circuits for capacitors

With its combination of low power loss, high efficiency, and space-saving design, the RB751S40T1G is an excellent choice for designers looking to optimize their power management solutions.
