ON Semiconductor NSR0240V2T1G - Schottky Barrier Diode

The NSR0240V2T1G from ON Semiconductor is a cutting-edge Schottky Barrier Diode, designed for high-efficiency applications that require a low forward voltage drop and fast switching capabilities. This diode is a perfect choice for use in power management designs, voltage clamping applications, and protection circuits.

Key Features:

• Low Forward Voltage: The diode offers a low forward voltage drop, typically 0.385 volts, which enhances the overall efficiency of the application by reducing power losses during conduction.
• High Current Capacity: With a forward continuous current rating of 2 A, this diode can handle significant current, making it suitable for a wide range of power applications.
• Fast Switching Speed: The NSR0240V2T1G is designed for fast switching, with a reverse recovery time that ensures quick transitions from conducting to non-conducting states.

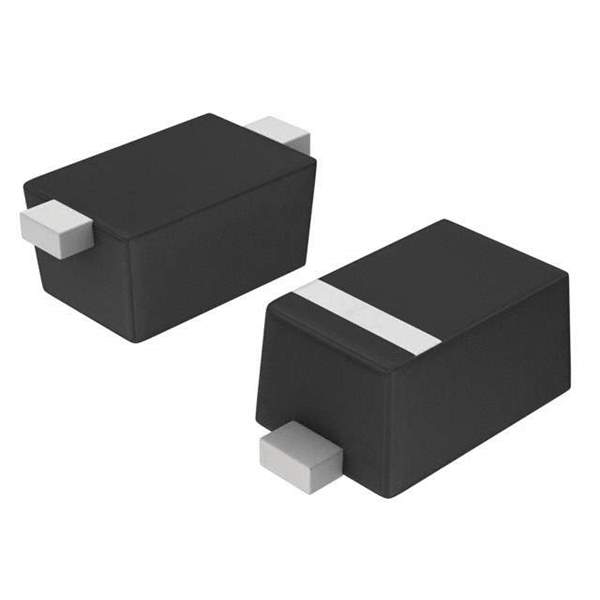

• Small Package Size: Enclosed in an SOD-123 package, the diode takes up minimal space on a circuit board, which is critical for compact electronic designs.
• Power Dissipation: Capable of dissipating up to 200 mW, this diode can tolerate moderate amounts of power without overheating.
• Low Leakage Current: It features a low leakage current of 0.5 µA at 24 V, which contributes to the reduction of standby power consumption.

Applications:

The NSR0240V2T1G is versatile and can be implemented in various applications, including:

• DC-DC Converters
• Power Supply Circuits
• Automotive Circuits
• Voltage Clamping
• Protection Circuits
• Reverse Voltage Protection

Quality and Reliability:

ON Semiconductor is known for its commitment to quality, and the NSR0240V2T1G is no exception. It is manufactured to high standards to ensure reliable performance in even the most demanding conditions. This Schottky Barrier Diode is RoHS compliant and is designed for lead-free assembly processes, reflecting ON Semiconductor's dedication to environmental responsibility.
