ON Semiconductor NCV8402ASTT1G Overview

The NCV8402ASTT1G is a robust automotive-grade low-side driver manufactured by ON Semiconductor, designed to handle a wide range of applications that require high current driving capabilities. This device is particularly suitable for driving inductive loads such as relays, solenoids, and lamps, as well as other high-current applications within the automotive environment.

Key Features

• High Current Drive Capability: The NCV8402ASTT1G is capable of delivering up to 2A of continuous current, making it suitable for driving a variety of high-power loads.
• Low R_DS(on): The device features a low on-state resistance, ensuring efficient operation with minimal power loss.
• Protection Features: It includes built-in protection features such as overcurrent limiting, thermal shutdown, and active clamp circuitry to protect against voltage spikes.
• Wide Operating Voltage Range: The device operates from a wide range of supply voltages, from 5V to 28V, accommodating various automotive power systems.
• Automotive Grade: Designed to meet the rigorous standards of the automotive industry, the NCV8402ASTT1G is AEC-Q100 qualified for high reliability.

Applications

The NCV8402ASTT1G is ideal for a variety of automotive applications, including but not limited to:

• Body Control Modules
• Powertrain Systems
• Engine Control Units
• LED Lighting
• DC Motor Control

Package and Quality

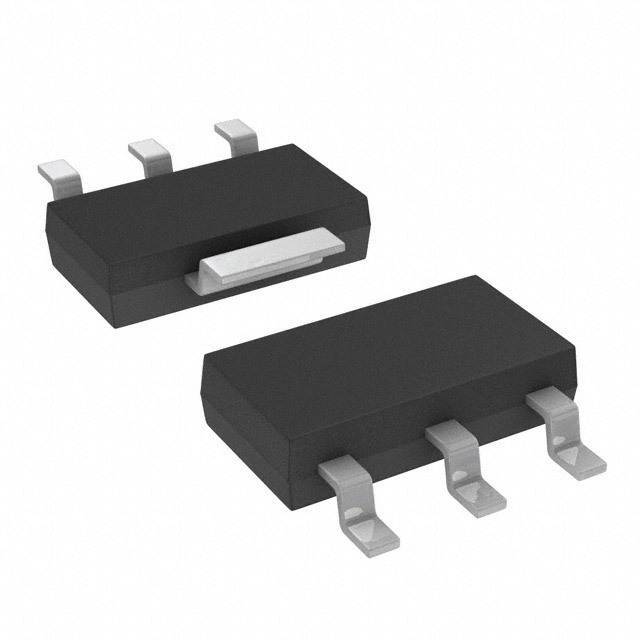

The device is offered in a compact SOT-223 package, which is designed for surface-mount technology (SMT) and is well-suited for space-constrained applications. The package is optimized for excellent thermal performance and is RoHS compliant.

With its combination of high current capability, protective features, wide voltage range, and automotive-grade reliability, the NCV8402ASTT1G from ON Semiconductor stands out as a superior choice for designers seeking a robust low-side driver solution for their automotive applications.
