The LM285Z-1.2G from ON Semiconductor is a precision micro-power shunt voltage reference that offers a fixed 1.2V output with a tight tolerance. This high-quality component is designed for a wide array of applications, including power supplies, battery-operated equipment, and precision electronics. Its low dynamic impedance and stable reverse breakdown voltage make it an excellent choice for voltage regulation and reference needs.

Key Features

• Output Voltage: Precisely regulated 1.2 volts, ensuring consistent performance across various loads and operating conditions.
• Temperature Coefficient: Features a low temperature coefficient, thereby maintaining voltage stability over a wide temperature range.

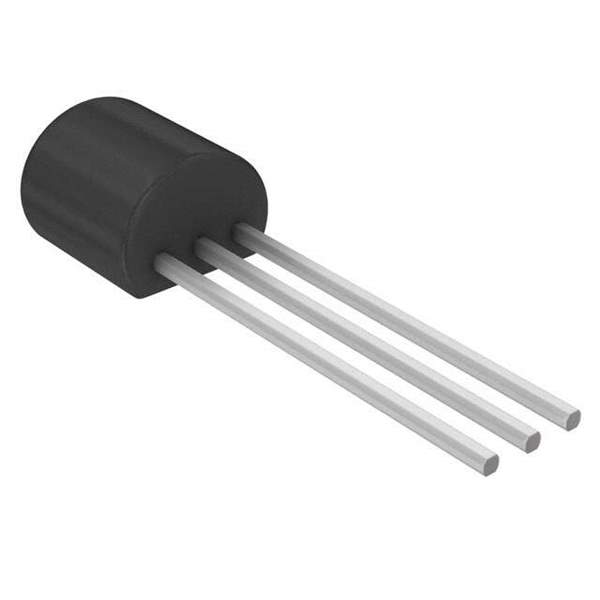

• Package: Available in a TO-92 package, which is suitable for through-hole mounting, making it easy to integrate into a variety of circuit designs.
• Trimmed Bandgap Design: Utilizes a precision-trimmed bandgap design that provides a stable and reliable reference voltage.
• Low Dynamic Impedance: Ensures minimal voltage variation with changing current loads, contributing to a stable and predictable system performance.
• Wide Operating Current: Supports an operating current range from 20 μA to 20 mA, allowing flexibility in a broad range of applications.

Applications

The LM285Z-1.2G is versatile and can be used in numerous applications. It is particularly well-suited for portable and battery-powered devices due to its low power consumption. Other applications include:

• Battery chargers
• Power supply monitors
• Digital voltmeters
• Precision current regulators
• Adjustable voltage or current references
• Analog-to-digital and digital-to-analog converters

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the LM285Z-1.2G is no exception. It is designed to meet the rigorous standards of the electronics industry and provides a reliable solution for your voltage reference needs. With its robust construction and proven design, this component is an ideal choice for engineers looking for a dependable and precise voltage reference source.
