ON Semiconductor BAT54SLT1G Schottky Barrier Diode

The BAT54SLT1G is a highly efficient, surface-mount Schottky Barrier Diode designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This diode is known for its low forward voltage drop and fast switching capabilities, making it an excellent choice for high-frequency applications and as a rectification element in various electronic circuits.

Key Features

• Low Forward Voltage: The BAT54SLT1G boasts a low forward voltage drop, which helps to minimize power loss and improve overall efficiency in circuit operation.
• Fast Switching Speed: With its quick response time, this diode is ideal for high-speed switching applications, ensuring minimal signal delay and high-frequency performance.

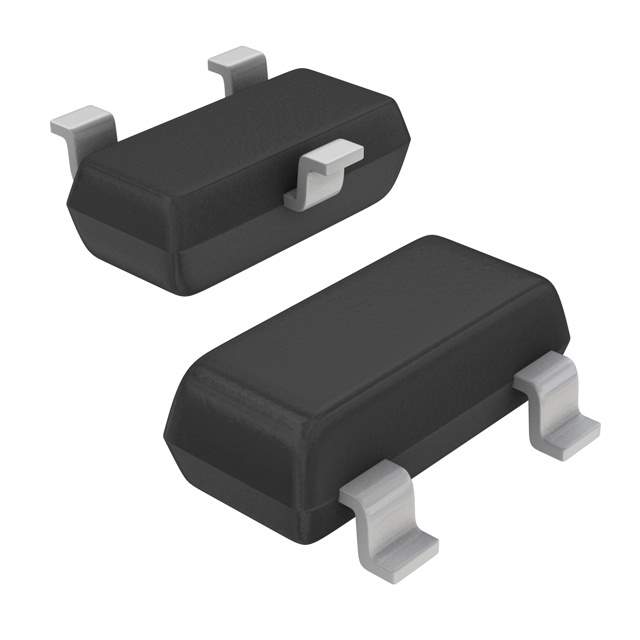

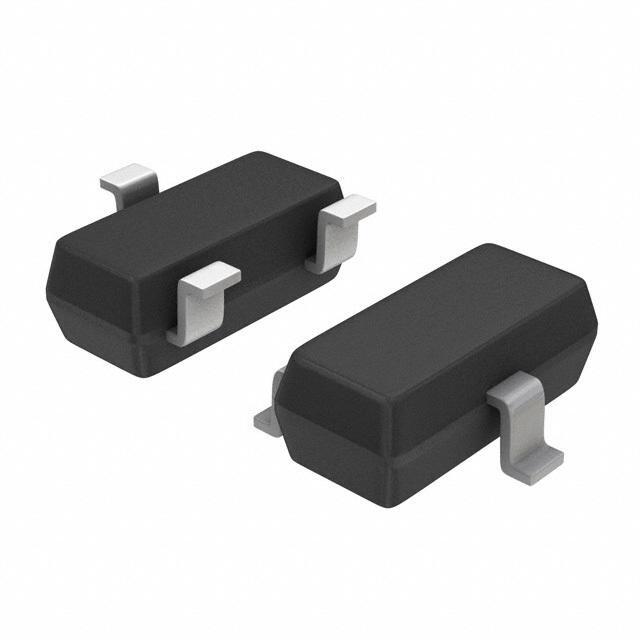

• Surface Mount Package: The SOT-23 package is compact and suitable for automated assembly processes, making it a convenient choice for high-volume production.
• Reverse Voltage: It is capable of withstanding a reverse voltage of up to 30 volts, providing a good margin for overvoltage conditions.
• Low Capacitance: The diode's low capacitance is beneficial for high-speed circuits where capacitance can impact the performance of the system.

Applications

The BAT54SLT1G is versatile and can be used in a wide range of applications, including:

• DC-DC conversion
• Power management systems
• Protection circuits
• Voltage clamping
• Reverse polarity protection
• Signal demodulation

Reliability and Quality

ON Semiconductor is committed to providing high-quality products, and the BAT54SLT1G is no exception. It is designed to meet rigorous industry standards for performance and reliability, ensuring that it can withstand the demands of various applications. Additionally, the product is RoHS compliant, indicating that it is manufactured with a focus on environmental safety and sustainability.

Whether you're designing power supply modules, portable devices, or any other electronic system requiring efficient rectification and switching, the BAT54SLT1G from ON Semiconductor is a reliable and effective component that delivers performance you can trust.
