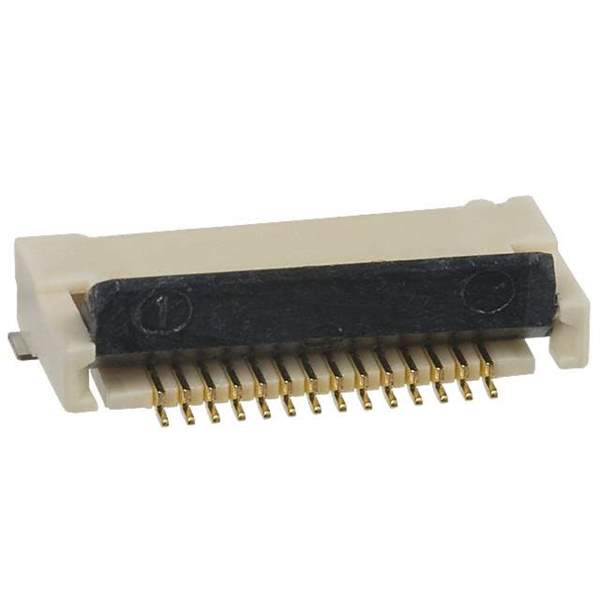

XF2M-1415-1A Real Image
Same model may have multiple batches, images only for reference.

XF2M-1415-1A

Part No XF2M-1415-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Rotary Backlock Connector (0.5-mm pitch, Dual Contact) | CONN FPC 14POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1282095-XF2M-1415-1A
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF2M-1415-1A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2M-1415-1A is an electronic component with a manufacturer reference number of 1282095.

  • Packaging: Reel
  • Number of Positions: 14
  • Pitch: 0.020" (0.50mm)
  • Mounting Style: SMT, Right Angle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90μin (0.150μm)
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Height Above Board: 0.083" (2.10mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: Contacts, Top and Bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Rotary Lock, Backlock
  • Cable End Type: Tapered
  • Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Dielectric Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Mating Cycles: 20
  • Operating Temperature Range: -30°C ~ 85°C
  • Actuator Color: Black
  • Manufacturer: Omron
  • Manufacturer Homepage: www.omron.com/index3.html
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): 0.5A
