The PMEG6010CEJ is a high-efficiency, low forward voltage drop Schottky barrier diode designed and manufactured by NXP Semiconductors. This diode is specifically engineered to meet the needs of modern, compact electronic applications requiring high energy efficiency and power density. With its small form factor and robust performance, the PMEG6010CEJ is an ideal choice for a wide range of applications, including power management, battery charging, and polarity protection circuits.

Key Features

• Low Forward Voltage: This diode offers a low forward voltage drop, typically 0.47 V at 1 A, which helps to minimize power loss and improve overall system efficiency.
• High Current Capability: With a forward current rating of 1 A, the PMEG6010CEJ can handle high current applications with ease.
• Low Reverse Leakage Current: The diode features a low reverse leakage current, which reduces power waste and enhances the performance of the power supply.
• Planar Maximum Efficiency General Application (MEGA) Schottky Technology: This technology ensures a high level of reliability and stability over a wide temperature range.

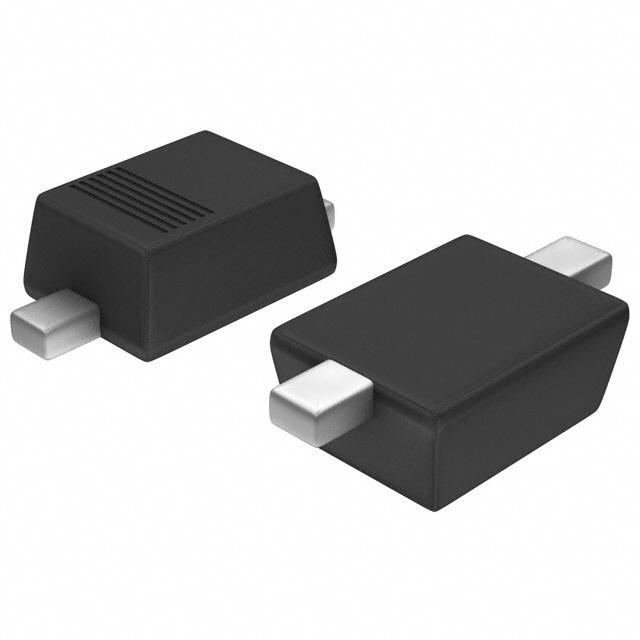

• Small and Compact Package: The PMEG6010CEJ comes in an SOD323 (SC-76) surface-mounted package, which is ideal for space-constrained applications.
• Wide Operating Temperature Range: The device is designed to operate over a broad temperature range from -65°C to +150°C, making it suitable for various challenging environments.

Applications

The PMEG6010CEJ is versatile and can be used in various applications, including:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Power management systems
• Reverse polarity protection
• Low voltage, high-frequency inverters
• Free-wheeling diodes in low voltage applications

The PMEG6010CEJ from NXP is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. By incorporating this Schottky barrier diode into your design, you can expect improved efficiency and performance in your electronic products.
