2N7002,215

Part No 2N7002,215
Manufacturer NXP / Nexperia
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 300MA SOT-23
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Input Capacitance 50pF @ 10V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 830mW (Ta)
Maximum Rds On at Id,Vgs 5 Ohm @ 500mA, 10V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)

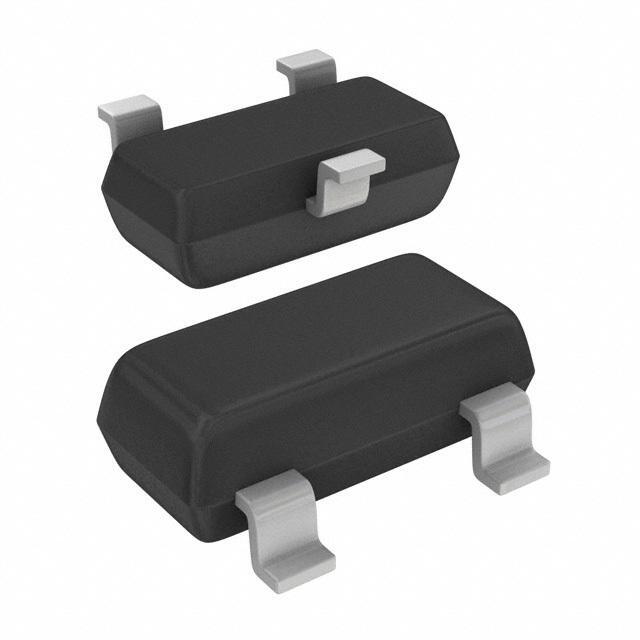

Case / Package TO-236AB (SOT23)
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 005716-2N7002,215
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 2N7002,215 CAD Model

Description

2N7002,215 from NXP / Nexperia is a widely recognized small-signal MOSFET used in compact switching, level shifting, signal routing, and general-purpose interface circuits. Although the provided category lists RF MOSFETs, engineers commonly evaluate this device for low-power electronic designs where board space, simple drive requirements, and broad ecosystem familiarity are important. It is often considered for consumer electronics, embedded control boards, power management support circuits, and industrial signal handling paths. From a sourcing perspective, this part is relevant for teams maintaining existing designs or qualifying alternates in cost-sensitive production. The current lifecycle status is information not available, so design and procurement teams should confirm manufacturer status before committing to new programs or long-term service builds. RoHS compliance information is also not available in the provided data and should be verified directly through the official datasheet, manufacturer compliance portal, or authorized distribution documentation before release to production.
