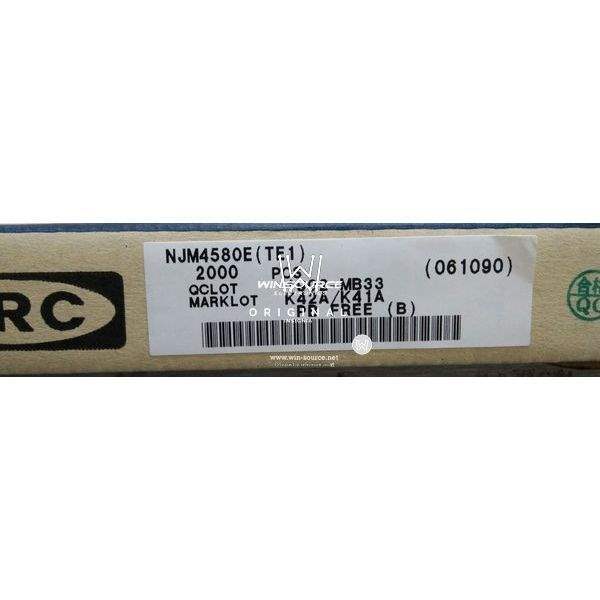

NJM4580E-TE1 NJR Corporation/NJRC NJM4580E-TE1 label picture NJM4580E-TE1 real image
NJM4580E-TE1 NJR Corporation/NJRC NJM4580E-TE1 label picture NJM4580E-TE1 real image
Same model may have multiple batches, images only for reference.

NJM4580E-TE1

Part No NJM4580E-TE1
Manufacturer NJR Corporation/NJRC
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP AUDIO 15MHZ 8EMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Manufacturer NJR-Corporation-NJRC
Packaging Tube
Amplifier Type Audio
Number of Circuits 2
Slew Rate 5 V/μs
Gain Bandwidth Product 15MHz
Current - Input Bias 100nA
Voltage - Input Offset 500μV
Current - Supply 6mA
Current - Output / Channel 50mA
Voltage - Supply, Single/Dual (±) 4 V ~ 36 V, ±2 V ~ 18 V
Operating Temperature Range -40°C ~ 85°C
Mounting Style SMD/SMT
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Device Package 8-EMP
Win Source Part Number 003995-NJM4580E-TE1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NJM4580E-TE1 CAD Model

Description

The NJM4580E-TE1 from NJR Corporation is a Linear Amplifier that belongs to the Instrumentation, OP Amps, Buffer Amps family of Integrated Circuits (ICs).

  • Circuits: 2
  • Amplifier Type: audio
  • Gain Bandwidth Product: 15MHz
  • Slew Rate: 5 V/μs
  • Voltage Supply: 4 V to 36 V
  • Current Supply: 6mA
  • Current Input Bias: 100nA
  • Voltage Input Offset: 500μV
  • Current Output per Channel: 50mA
  • Package: 8-SOIC (0.154", 3.90mm Width)
  • Mounting Style: SMD/SMT
  • Operating Temperatures: -40°C to 85°C
  • Popularity: high
