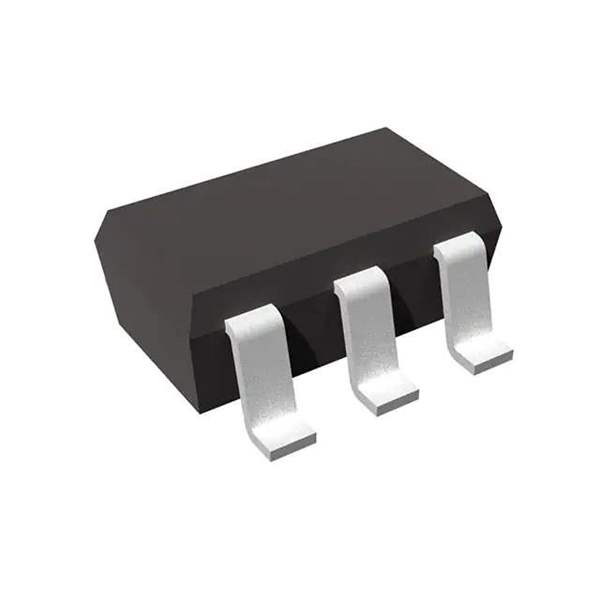

R5523N001B-TR-FE Real Image
Same model may have multiple batches, images only for reference.

R5523N001B-TR-FE

Part No R5523N001B-TR-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 SOT23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Active
Switch Type USB Switch
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Voltage - Load 2.2V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 1.3A
Rds On (Typ) 130mOhm
Input Type Non-Inverting
Fault Protection Over Current, Over Temperature, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package SOT-23-5
Package / Case SC-74A, SOT-753
Base Product Number R5523
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 720022-R5523N001B-TR-FE
Ultra Librarian 3D Model Ultra Librarian R5523N001B-TR-FE CAD Model

Description

The R5523N001B-TR-FE is a power distribution switch and load driver integrated circuit.

  • Application: Power management, power distribution switches
  • Output Type: P-Channel
  • Input Type: Non-inverting
  • Switch Type: USB switch
  • Fault Protection: Over current, over temperature, short circuit, and UVLO
  • Number of Outputs: One
  • Maximum Output Current: 1.3A
  • Voltage Load Range: 2.2V to 5.5V
  • Typical Rds On: 130mOhm
  • Mounting: Surface mountable
  • Package: SC-74A, SOT-753
  • Packaging: Tape and reel
  • Standard Package: 3,000 pieces
  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Series: R5523
  • Status: Active
