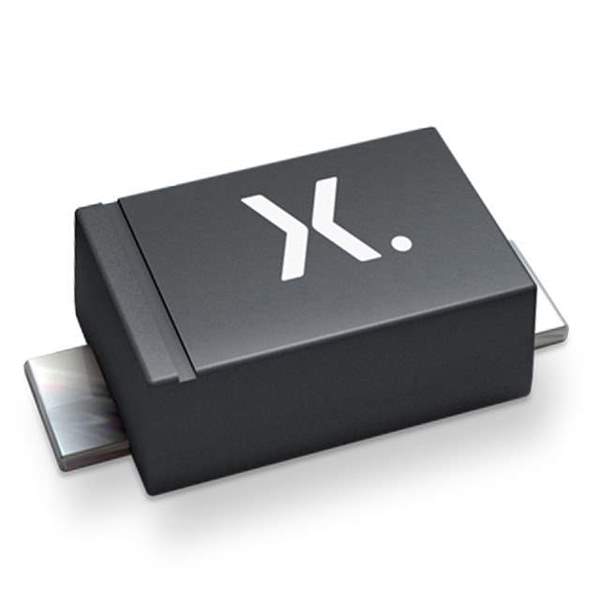

PMEG10020ELRX Real Image
Same model may have multiple batches, images only for reference.

PMEG10020ELRX

Part No PMEG10020ELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 2A SOD123W
Datasheet
PMEG10020ELRX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Diode 100 V
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Family Name PMEG10020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 934068674115, 568-12695-1, 1727-2396-6, 1727-2396-2, 568-12695-1-ND, 568-12695-2, 1727-2396-1, 568-12695-2-ND, 568-12695-6, 568-12695-6-ND
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 850482-PMEG10020ELRX
Ultra Librarian 3D Model Ultra Librarian PMEG10020ELRX CAD Model

Description

The PMEG10020ELRX is a diode that is designed for use in automotive applications.

  • Maximum Voltage Rating: 100 V
  • Manufacturer: Nexperia USA Inc.
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Application: Automotive
  • Package: Reel
  • Quantity Per Package: 3000
