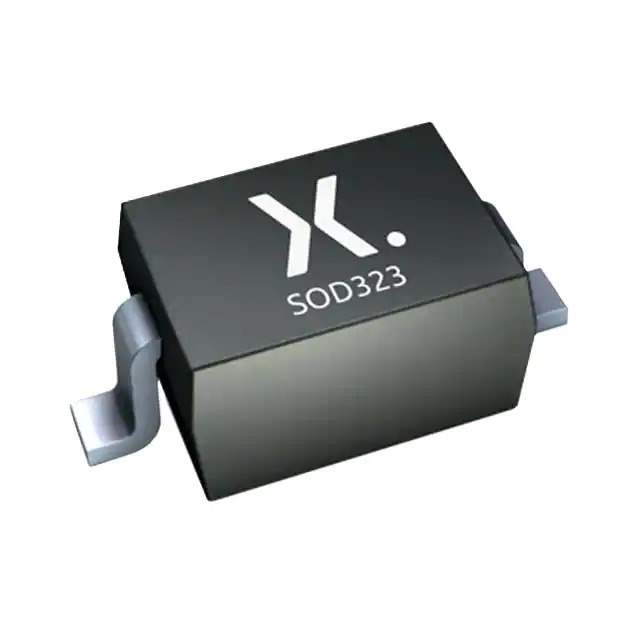

PESD5V0S1BA,115 Real Image PESD5V0S1BA,115 real image16160 PESD5V0S1BA,115 real image16161
PESD5V0S1BA,115 Real Image PESD5V0S1BA,115 real image16160 PESD5V0S1BA,115 real image16161
Same model may have multiple batches, images only for reference.

PESD5V0S1BA,115

Part No PESD5V0S1BA,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Protection Diodes / TVS Diodes Bidirectional ESD protection diode
Datasheet
PESD5V0S1BA,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 14V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 130W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 35pF @ 1MHz
Temperature Range - Operating -65°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Base Product Number PESD5
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 843549-PESD5V0S1BA,115
Ultra Librarian 3D Model Ultra Librarian PESD5V0S1BA,115 CAD Model

Description

The PESD5V0S1BA,115 is a Zener type TVS diode designed for general-purpose circuit protection against electrostatic discharge (ESD) and other transient voltage events from Nexperia USA Inc.

  • Channel Configuration: Bidirectional
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 5.5V
  • Clamping Voltage: 14V @ Peak Pulse Current (Ipp)
  • Peak Pulse Power: 130W
  • Capacitance: 35pF @ 1MHz
  • Mounting Type: Surface Mountable
  • Package: SC-76, SOD-323
  • Operating Temperature: -65°C to 150°C
  • Application: Automotive
  • Product Status: Active
