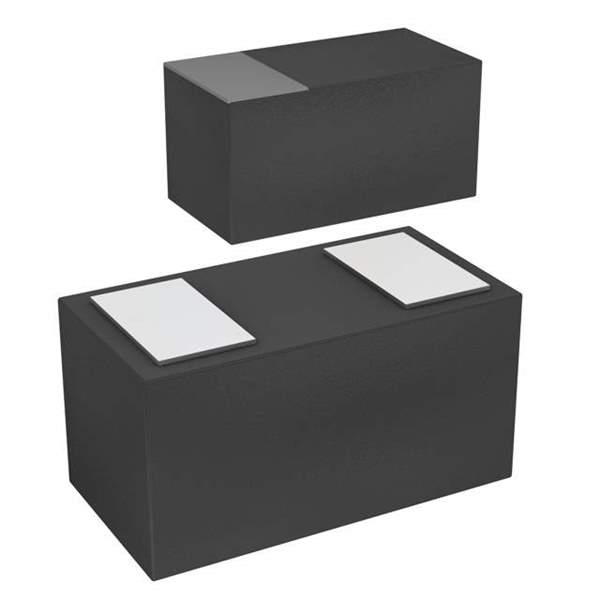

PESD5V0C1BSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD5V0C1BSFYL

Part No PESD5V0C1BSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 6.5VC DSN0603-2 / 6.5V (Typ) Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD5V0C1BSFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series TrEOS
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 6.5V (Typ)
Current - Peak Pulse (10/1000µs) 9A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD5V0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-2175-1,568-12339-6-ND,9340 687 66315,568-12339-1-ND,568-12339-2-ND,PESD5V0C1BSF,568-12339-6,1727-2175-2,568-12339-1,568-12339-2,1727-2175-6,934068766315
Standard Package 9,000
Win Source Part Number 979953-PESD5V0C1BSFYL
Ultra Librarian 3D Model Ultra Librarian PESD5V0C1BSFYL CAD Model

Description

The TrEOS series PESD5V0C1BSFYL Zener diode from Nexperia USA Inc. is a bidirectional single-channel diode.

  • Application: General Purpose
  • Packaging: Tape and Reel
  • Reverse Standoff Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Clamping Voltage: 6.5V @ 8/20µs
  • Capacitance (1MHz): 0.2pF
  • Peak Pulse Current: 9A @ 10/1000µs
  • Operating Temperature: -40°C to 125°C
  • RoHS Compliant: Yes
  • REACH: Unaffected
