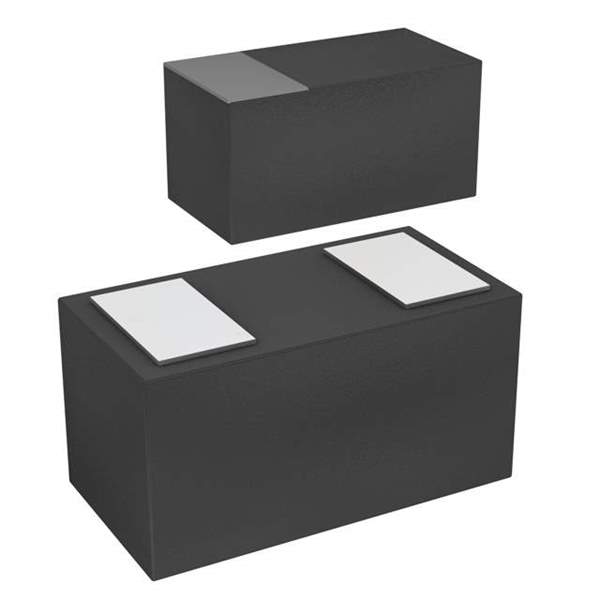

PESD3V3Y1BSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD3V3Y1BSFYL

Part No PESD3V3Y1BSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE DSN0603-2 / 3.7V (Typ) Clamp Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD3V3Y1BSFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4.2V
Voltage - Clamping (Max) @ Ipp 3.7V (Typ)
Power Line Protection No
Applications HDMI2, USB 3.2
Capacitance @ Frequency 0.29pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD3V3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-7839-2,1727-7839-1,1727-7839-6,934660033315
Standard Package 9,000
Win Source Part Number 1108857-PESD3V3Y1BSFYL
Ultra Librarian 3D Model Ultra Librarian PESD3V3Y1BSFYL CAD Model

Description

The PESD3V3Y1BSFYL is a Zener-type TVS diode that is designed for use in circuit protection applications.

  • Application: It is designed to protect HDMI2 and USB 3.2 applications.
  • Voltage Reverse Standoff: It has a voltage reverse standoff of 3.3V (Max).
  • Voltage Breakdown: It has a voltage breakdown of 4.2V (Min).
  • Voltage Clamping: The device has a voltage clamping of 3.7V (Typ) @ Ipp.
  • Capacitance: It has a capacitance of 0.29pF @ 1MHz.
  • Package: The PESD3V3Y1BSFYL is available in a 0201 (0603 Metric) package.
  • Standard Package: It has a standard package of 9,000.
