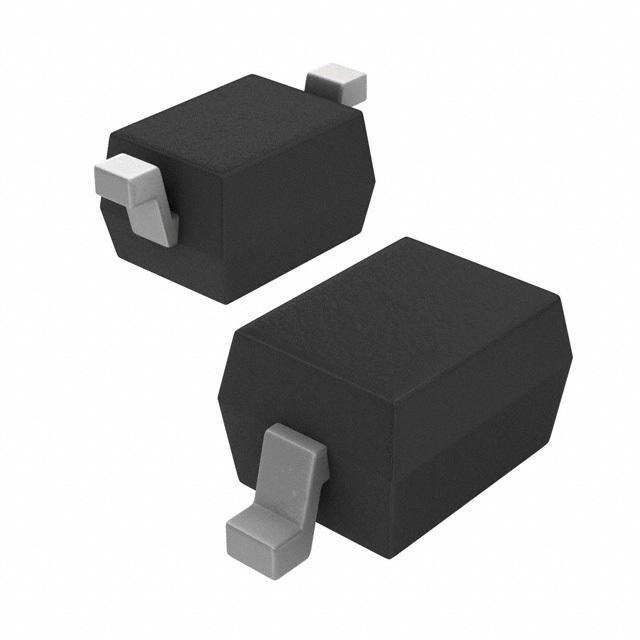

PESD3V3L1BA,115 Nexperia USA Inc. PESD3V3L1BA,115 real image PESD3V3L1BA,115 label picture
PESD3V3L1BA,115 Nexperia USA Inc. PESD3V3L1BA,115 real image PESD3V3L1BA,115 label picture
Same model may have multiple batches, images only for reference.

PESD3V3L1BA,115

Part No PESD3V3L1BA,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Bi-Dir 3.3V Automotive 2-Pin SOD-323 T/R / TVS DIODE 3.3VWM 26VC SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 26V
Peak Pulse Current(Ippm) 18A (8/20μs)
Power Dissipation - Pd 500W
Applications General Purpose
Capacitance @ Frequency 101pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1087549-PESD3V3L1BA,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name PESD3V3L1BA
Introduction Date October 04, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PESD3V3L1BA,115 CAD Model

Description

The PESD3V3L1BA Zener diode from Nexperia USA Inc. is a bidirectional channel device that is designed for general purpose applications.

  • Channels: Bidirectional
  • Application: General purpose
  • Mounting Type: SMD (SMT)
  • Package: SOD-323
  • Peak Pulse Current: 18A (8/20μs)
  • Power Dissipation: 500W
  • Stand-off Voltage (Vwm): 3.3V (Max)
  • Breakdown Voltage (Min): 5.8V
  • Clamping Voltage (Max): 26V
  • Capacitance: 101pF @ 1MHz
  • Family: PESD3V3L1BA
  • Category: Circuit protection
  • Halogen-Free: Yes
  • EOL Date: 2026
  • Popularity: High
