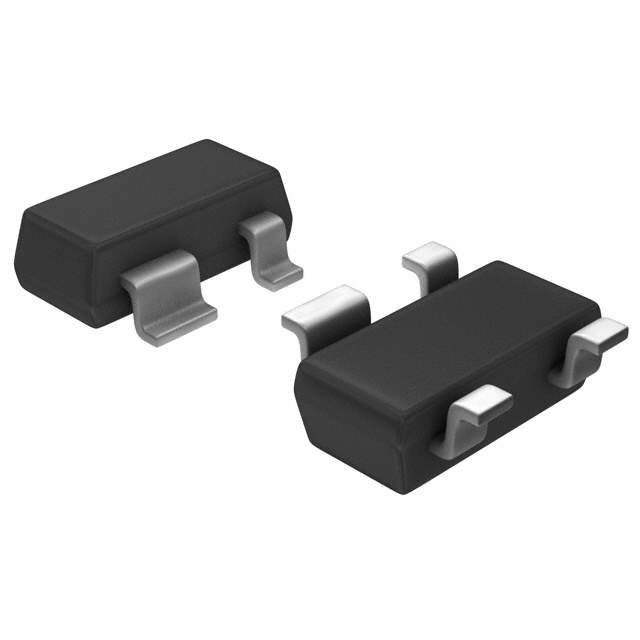

PESD2ETH-AXR Real Image PESD2ETH-AXR real image17264
PESD2ETH-AXR Real Image PESD2ETH-AXR real image17264
Same model may have multiple batches, images only for reference.

PESD2ETH-AXR

Part No PESD2ETH-AXR
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM SOT143B
Datasheet
PESD2ETH-AXR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 11 Weeks
Features - Clamp - Ipp Tvs Diode Surface Mount SOT-143B
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package TO-253-4, TO-253AA
Case / Package SOT-143B
Family Name PESD2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-2671-6, 568-13187-6-ND, 568-13187-2, 568-13187-1, 568-13187-2-ND, 568-13187-1-ND, 568-13187-6, 934070158215, 1727-2671-2, PESD2ETH-AXR-ND, 1727-2671-1
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930272-PESD2ETH-AXR
Ultra Librarian 3D Model Ultra Librarian PESD2ETH-AXR CAD Model

Description

The Nexperia USA Inc. PESD2ETH-AXR is a surface mount SOT-143B clamp Ipp TVS diode that is automotive and AEC-Q101 series compliant.

  • Application: Circuit protection
  • Operating Temperature: -40°C to 125°C (TA)
  • Series: PESD2
  • Supply and Demand Status: Balanced with High Popularity
  • Package: reel-TR
  • Quantity per Package: 3000
  • MSL Level: 1
  • REACH: Unaffected
  • Estimated Production Lead Time: 11 weeks
  • Also Known As: 1727-2671-6, 568-13187-6-ND, 568-13187-2, 568-13187-1, 568-13187-2-ND, 568-13187-1-ND, 568-13187-6, 934070158215, 1727-2671-2, PESD2ETH-AXR-ND, and 1727-2671-1
