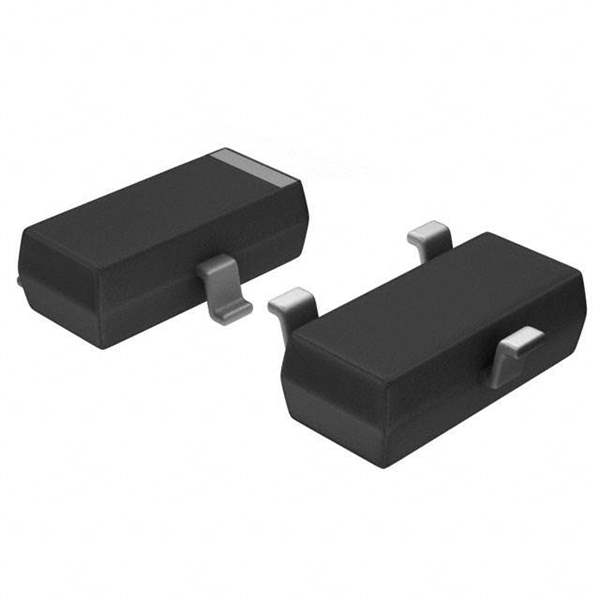

NUP1301,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

NUP1301,215

Part No NUP1301,215
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 80VWM 20VC SOT23-3
Datasheet
NUP1301,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 80V (Max)
Minimum Breakdown Voltage 100V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 11A (8/20μs)
Power Dissipation - Pd 220W
Applications Automotive
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23 (TO-236AB)
Win Source Part Number 1084068-NUP1301,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NUP1301,215 CAD Model

Description

The NUP1301,215 is a steering (rail to rail) type circuit protection component that is designed for use in automotive applications from Nexperia USA Inc.

  • Channel: unidirectional channel device
  • Capacitance: 0.6pF @ 1MHz
  • Stand-Off Voltage (Vwm): 80V (Max)
  • Minimum Breakdown Voltage: 100V
  • Maximum Clamping Voltage: 20V
  • Peak Pulse Current(Ippm): 11A (8/20μs)
  • Temperature Range: -55°C to 150°C (TA)
  • Case/Package: SOT-23 (TO-236AB)
  • Power Dissipation - Pd: 220W
  • Supply and Demand Status: sufficient
