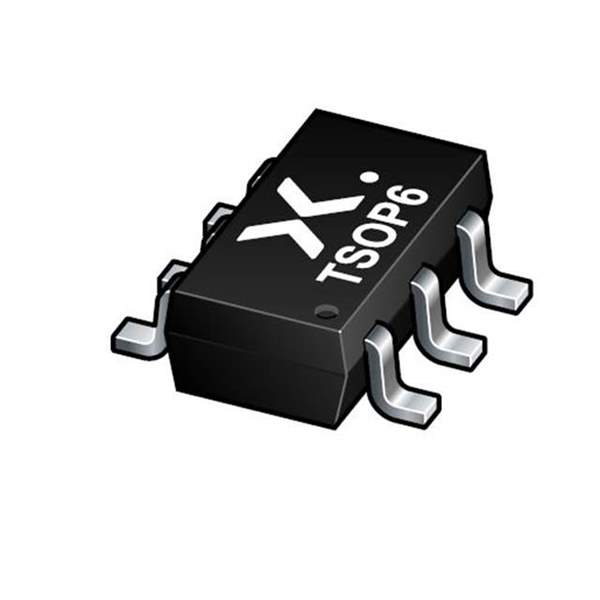

IP4220CZ6F Real Image
Same model may have multiple batches, images only for reference.

IP4220CZ6F

Part No IP4220CZ6F
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 6TSOP / Clamp Ipp Tvs Diode Surface Mount 6-TSOP
Datasheet
IP4220CZ6F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case SC-74, SOT-457
Supplier Device Package 6-TSOP
Base Product Number IP4220
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 568-13318-2-ND,1727-2751-1,568-13318-1-ND,568-13318-1,568-13318-2,568-13318-6-ND,568-13318-6,1727-2751-6,1727-2751-2,934058429135
Standard Package 10,000
Win Source Part Number 1125485-IP4220CZ6F
Ultra Librarian 3D Model Ultra Librarian IP4220CZ6F CAD Model

Description

The IP4220CZ6F is a TVS diode manufactured by Nexperia USA Inc.

  • Manufacturer: Nexperia USA Inc.
  • Application: General Purpose
  • Reverse Standoff Voltage (Max): 5.5 V
  • Diode Type: Schottky
  • Average Rectified Current: 500mA (DC)
  • Voltage Forward @ Max Current: 390 mV @ 500 mA
  • Reverse Leakage Current @ Max Reverse Voltage: 200 µA @ 20 V
  • Capacitance @ 1MHz: 1pF @ 1V
  • Package: SC-74, SOT-457
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C (TA)
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
