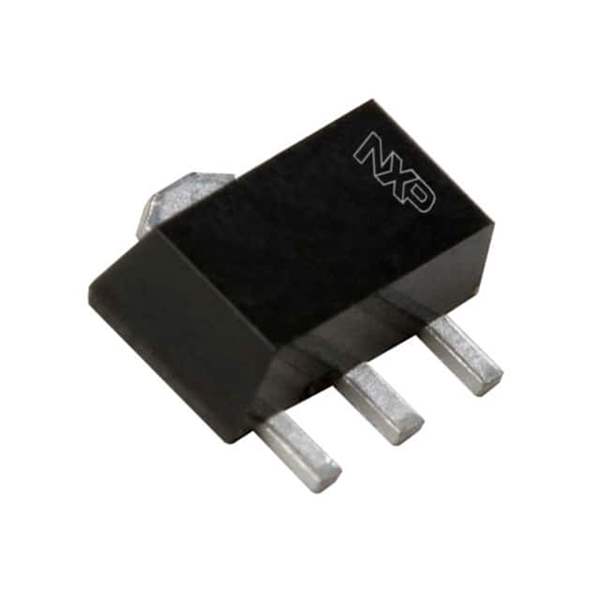

BCX51-16,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BCX51-16,115

Part No BCX51-16,115
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS PNP 45V 1A SOT89 / Bipolar (BJT) Transistor PNP 45 V 1 A 145MHz 1.3 W Surface Mount SOT-89
Datasheet
BCX51-16,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
Transistor Type PNP
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 2V
Power - Max 1.3 W
Frequency - Transition 145MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number BCX51
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Names 568-8019-6-ND,568-8019-2-ND,568-8019-1-ND,1727-6208-2,BCX51-16,115-ND,1727-6208-1,2156-BCX51-16,115-1727,1727-6208-6,933674710115,568-8019-1,568-8019-2,568-8019-6,BCX51-16 T/R-ND,BCX51-16 T/R
Standard Package 1,000
Win Source Part Number 1112433-BCX51-16,115
Ultra Librarian 3D Model Ultra Librarian BCX51-16,115 CAD Model

Description

The BCX51-16,115 is a PNP transistor designed for use in discrete semiconductor products, specifically in transistors - bipolar (BJT) - single category.

  • Maximum Power: 1.3 W
  • Maximum Collector-Emitter Breakdown Voltage: 45 V
  • Maximum Collector Current: 1 A
  • Vce Saturation: 500mV @ 50mA, 500mA
  • DC Current Gain (hFE): 100 @ 150mA, 2V
  • Frequency-Transition: 145MHz
  • Package/Case: TO-243AA
  • Supplier Device Package: SOT-89
  • Operating Temperature Range: 150°C (TJ)
  • Manufacturer: Nexperia USA Inc.
  • Packaging: tape and reel
