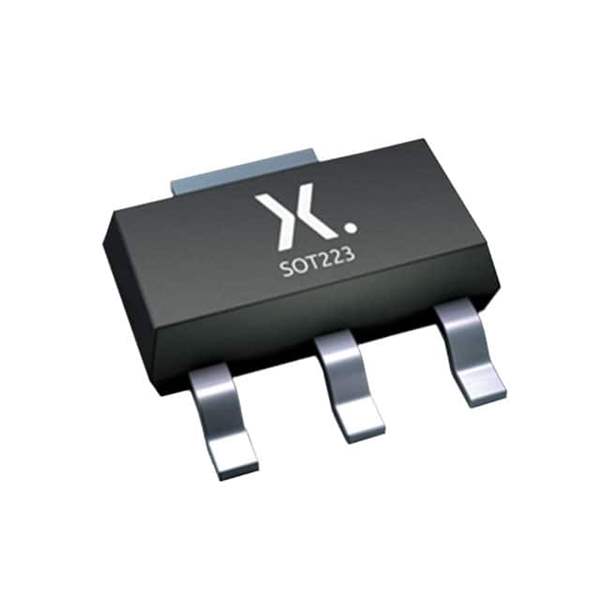

BCP51,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BCP51,115

Part No BCP51,115
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS PNP 45V 1A SOT223 / Bipolar (BJT) Transistor PNP 45 V 1 A 145MHz 1 W Surface Mount SOT-223
Datasheet
BCP51,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
Transistor Type PNP
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 63 @ 150mA, 2V
Power - Max 1 W
Frequency - Transition 145MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223
Base Product Number BCP51
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Names 1727-4885-6,568-6102-6-ND,1727-4885-2,1727-4885-1,568-6102-2-ND,933917270115,568-6102-1-ND,568-6102-6,568-6102-2,BCP51,115-ND,BCP51 T/R,BCP51 T/R-ND,568-6102-1,BCP51115
Standard Package 1,000
Win Source Part Number 1145856-BCP51,115
Ultra Librarian 3D Model Ultra Librarian BCP51,115 CAD Model

Description

The BCP51 is a PNP bipolar transistor with a maximum power rating of 1W.

  • Power - Max: 1W
  • Collector-Emitter Breakdown Voltage: 45V
  • Collector Current Rating: 1A
  • Vce Saturation: 500mV @ 50mA, 500mA
  • Collector Cutoff Current: 100nA
  • DC Current Gain: 63 @ 150mA, 2V
  • Transition Frequency: 145MHz
  • Package: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223
  • Operating Temperature: 150°C (TJ)
  • REACH: Unaffected
  • Alternative Part Numbers: BCP51,115 and BCP51115
