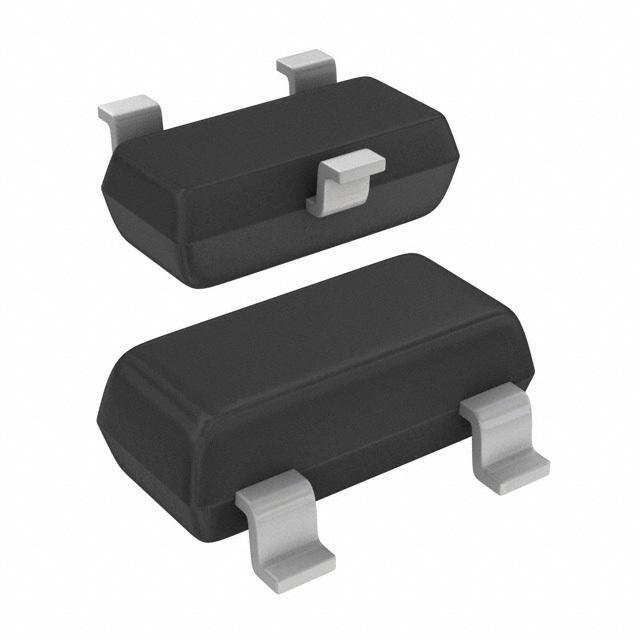

BAT54S,215 Nexperia USA Inc. BAT54S,215 label picture BAT54S,215 real image21527
BAT54S,215 Nexperia USA Inc. BAT54S,215 label picture BAT54S,215 real image21527
Same model may have multiple batches, images only for reference.

BAT54S,215

Part No BAT54S,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description Schottky Diodes & Rectifiers Schottky barrier diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel package
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction 150°C (Maximum)
Mounting SMD
Package TO-236-3, SC-59, SOT-23-3
Manufacturer Package TO-236AB (SOT23)
Win Source Part Number 769689-BAT54S,215
Popularity Medium
Supply and Demand Status Limited
Family Name BAT54S
Introduction Date March 18, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BAT54S,215 CAD Model

Description

The Nexperia USA Inc. BAT54S,215 is a Schottky diode pair series connection designed for use in discrete semiconductor products.

  • Diode Configuration: Pair series connection
  • Maximum DC Reverse Voltage: 30V
  • Maximum Forward Voltage: 800mV @ 100mA
  • Average Rectified Current: 200mA (DC) per diode
  • Package: TO-236-3, SC-59, SOT-23-3
  • Operating Temperature (Maximum): 150°C
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2024
