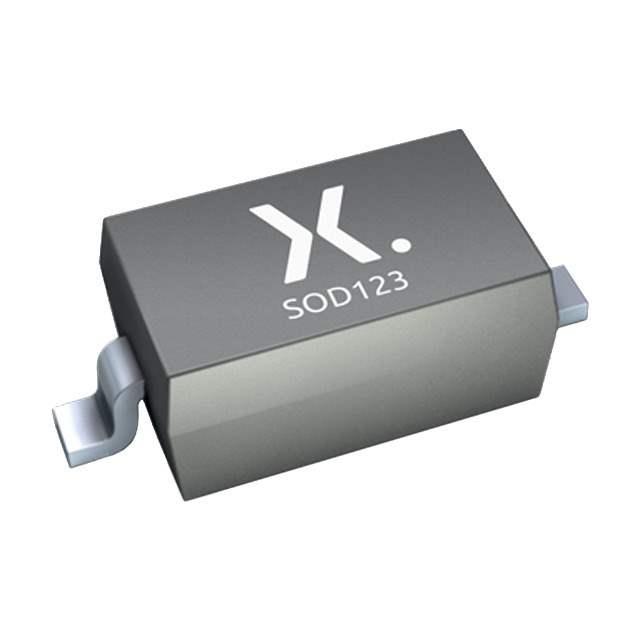

BAT54GWJ Real Image BAT54GWJ Real Image1 BAT54GWJ Real Image2
BAT54GWJ Real Image BAT54GWJ Real Image1 BAT54GWJ Real Image2
Same model may have multiple batches, images only for reference.

BAT54GWJ

Part No BAT54GWJ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOD123 / Diode 30 V 200mA Surface Mount SOD-123
Datasheet
BAT54GWJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 400 mV @ 10 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction 150°C (Max)
Base Product Number BAT54
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 850877-BAT54GWJ
Ultra Librarian 3D Model Ultra Librarian BAT54GWJ CAD Model

Description

The 850877-BAT54GWJ is a Schottky diode from Nexperia USA Inc.

  • Application: Rectifier
  • Series: Automotive AEC-Q101
  • Type: Fast Recovery Diode
  • Recovery Time: Less than 500ns
  • Forward Current: Greater than 200mA
  • Reverse Voltage: 30V (Max)
  • Average Rectified Current: 200mA
  • Forward Voltage: 400mV @ 10mA
  • Reverse Leakage Current: 2μA @ 25V
  • Mounting: Surface Mount
  • Package: SOD-123
  • Operating Temperature: Up to 150°C
