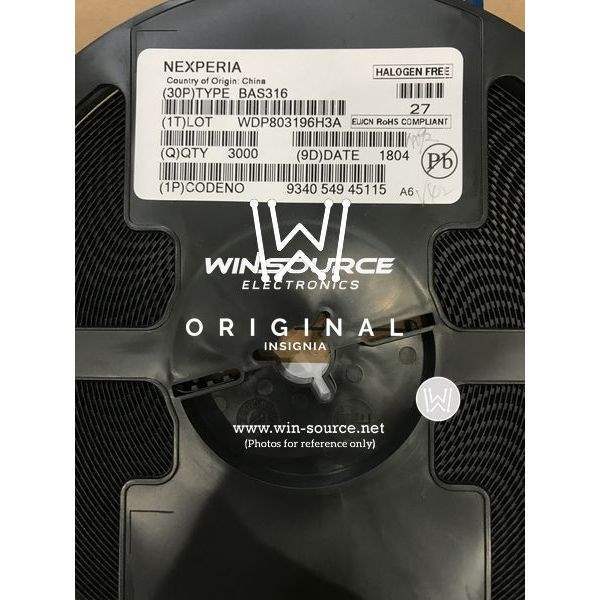

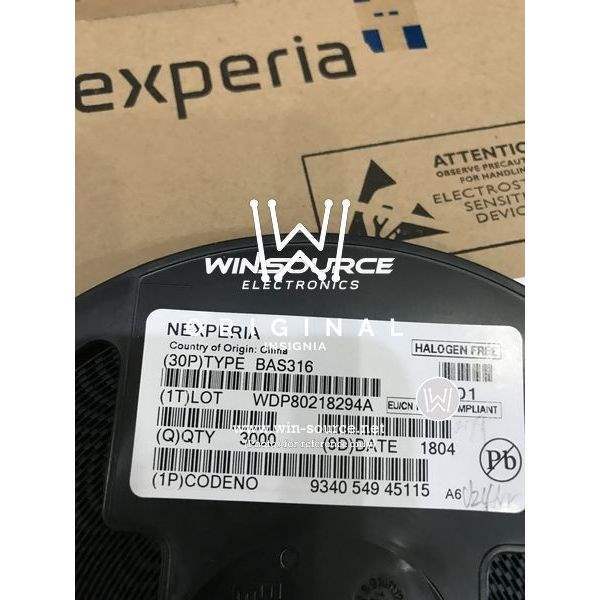

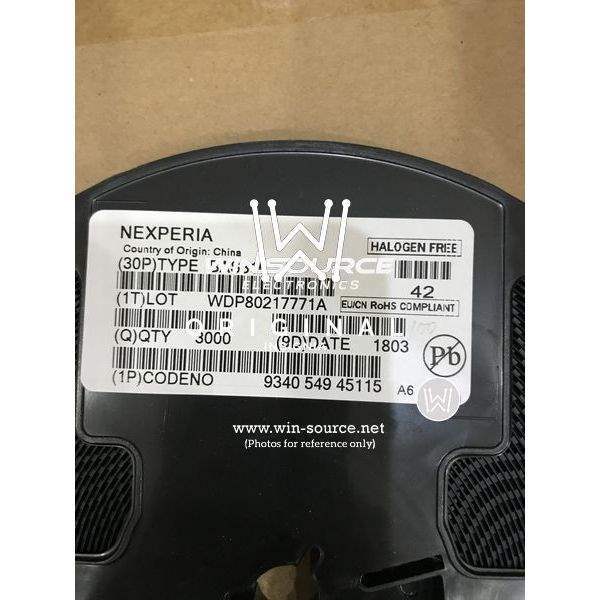

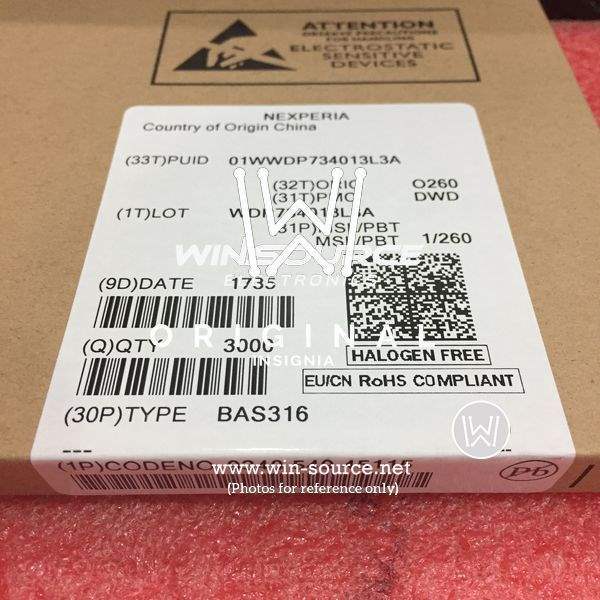

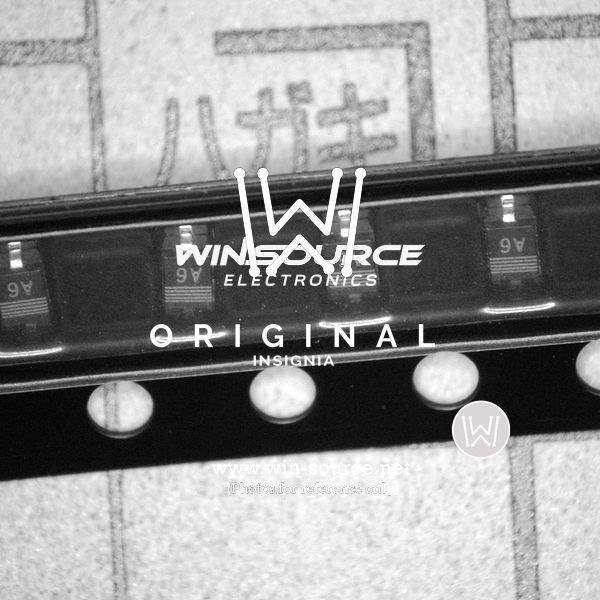

BAS316,115 Nexperia USA Inc. BAS316,115 real image BAS316,115 real image21526 BAS316,115 label picture BAS316,115 label picture 2 BAS316,115 label picture 3 BAS316,115 label picture 4 BAS316,115 label picture 5 BAS316,115 label picture 6 BAS316,115 label picture 7 BAS316,115 label picture 8
BAS316,115 Nexperia USA Inc. BAS316,115 real image BAS316,115 real image21526 BAS316,115 label picture BAS316,115 label picture 2 BAS316,115 label picture 3 BAS316,115 label picture 4 BAS316,115 label picture 5 BAS316,115 label picture 6 BAS316,115 label picture 7 BAS316,115 label picture 8
Same model may have multiple batches, images only for reference.

BAS316,115

Part No BAS316,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 250MA SOD323 / Diode Switching 100V 0.25A Automotive 2-Pin SOD-323 T/R
Datasheet
BAS316,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel package
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.25V @ 150mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 500nA @ 80V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD
Package SC-76, SOD-323
Manufacturer Package SOD-323
Operating Temperature - Junction 150°C (Maximum)
Win Source Part Number 769680-BAS316,115
Popularity Medium
Supply and Demand Status Limited
Family Name BAS316
Introduction Date August 31, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BAS316,115 CAD Model

Description

Nexperia USA Inc.'s 769680-BAS316,115 is a medium popularity electronic component that has a limited supply in the market.

  • Manufacturer: Nexperia USA Inc.
  • Product Specification: Detailed information about the component.
  • Component Attributes: Packaging, speed, mounting, diode type, current, capacitance, operating temperature
