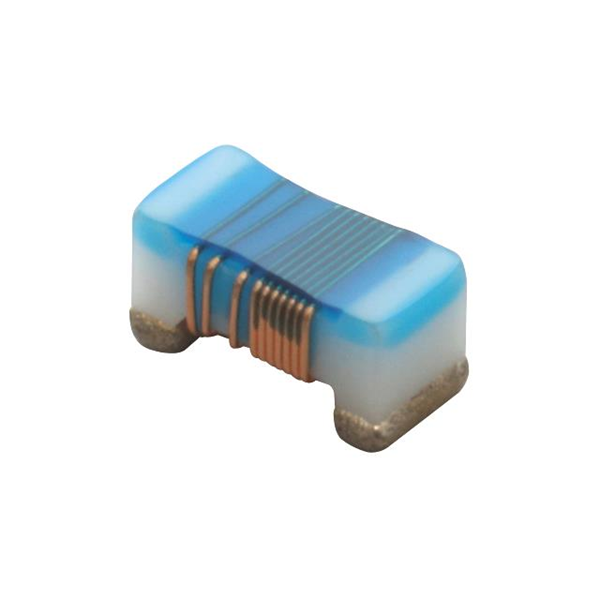

LQW18ANR12J00D Real Image
Same model may have multiple batches, images only for reference.

LQW18ANR12J00D

Part No LQW18ANR12J00D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 120NH 180MA 1.3 OHM
Datasheet
LQW18ANR12J00D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Non-Magnetic
Inductance 120nH
Tolerance ±5%
Current Rating 180mA
DC Resistance (DCR) 1.3 Ohm Max
Q @ Freq 32 @ 150MHz
Frequency - Self Resonant 1.6GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100MHz
Mounting SMD (SMT)
Case / Package 0603 (1608 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 020137-LQW18ANR12J00D
Ultra Librarian 3D Model Ultra Librarian LQW18ANR12J00D CAD Model

Description

The Murata Electronics North America 020137-LQW18ANR12J00D is a wirewound inductor with the following specifications:

  • Current Rating: 180mA
  • Inductance: 120nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 1.3 Ohm Max
  • Operating Temp Range: Not specified
  • Package: 0603 (1608 Metric)
  • Status: Active with low popularity
