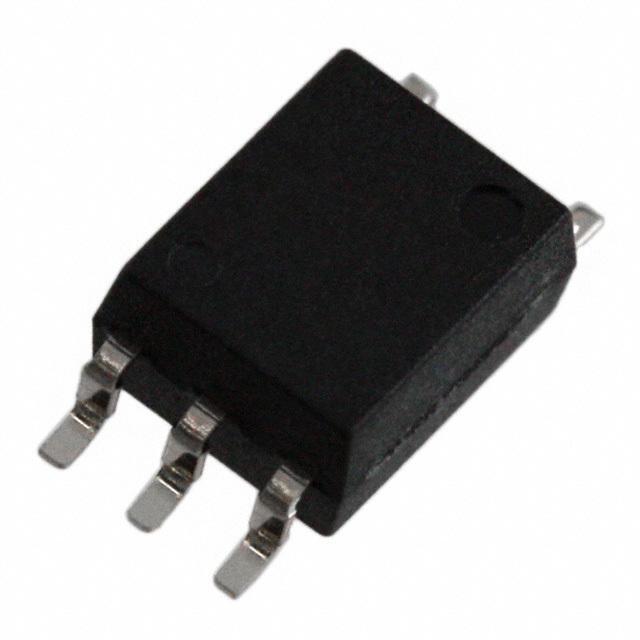

TLP2361 Toshiba Semiconductor and Storage TLP2361 real image7455 TLP2361 Real Image1 TLP2361 Real Image2 TLP2361 Real Image3 TLP2361 Real Image4 TLP2361 Real Image5 TLP2361 Real Image6 TLP2361 Real Image7 TLP2361 Real Image8 TLP2361 Real Image9
TLP2361 Toshiba Semiconductor and Storage TLP2361 real image7455 TLP2361 Real Image1 TLP2361 Real Image2 TLP2361 Real Image3 TLP2361 Real Image4 TLP2361 Real Image5 TLP2361 Real Image6 TLP2361 Real Image7 TLP2361 Real Image8 TLP2361 Real Image9
Same model may have multiple batches, images only for reference.

TLP2361

Part No TLP2361
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV PSH PULL SO6-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 10mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise and Fall Time 3ns, 3ns
Forward Voltage 1.5V
Continuous forward current- Max 10mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SO, 5 Lead
Win Source Part Number 104103-TLP2361
Family Name TLP2361
Introduction Date July 22, 2013
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2031
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP2361 CAD Model

Description

The TLP2361 is an optocoupler from Toshiba Semiconductor and Storage.

  • Output Type: push-pull, totem pole
  • Data Rate: 15MBd
  • Isolation Voltage: 3750Vrms
  • Propagation Delay: 80ns
  • Supply Voltage Range: 2.7 V to 5.5 V
  • Rise and Fall Time: 3ns
  • Maximum Channel Output Current: 10mA
  • Package: 6-SO, 5 Lead
