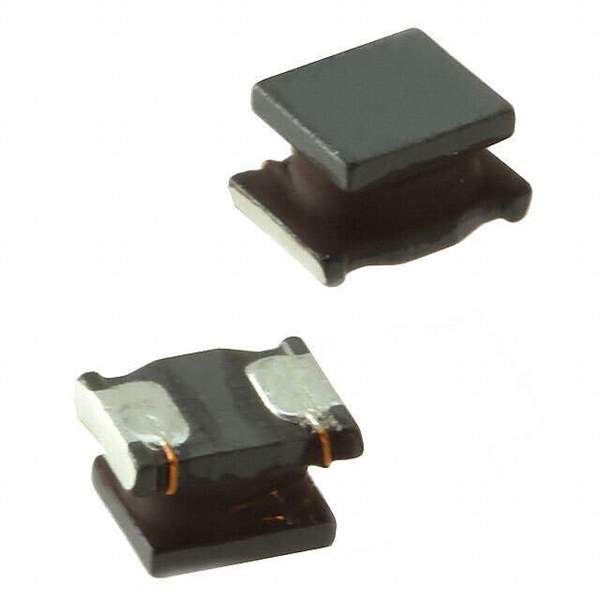

LQH43MN471J03L Real Image
Same model may have multiple batches, images only for reference.

LQH43MN471J03L

Part No LQH43MN471J03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Wirewound 3.3uH 30% 1MHz Ferrite 1.2A 0.144Ohm DCR 1210 T/R / FIXED IND 470UH 80MA 11.8 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 470μH
Tolerance ±5%
Current Rating 80mA
DC Resistance (DCR) 11.8 Ohm Max
Q @ Freq 40 @ 796kHz
Frequency - Self Resonant 3MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.110" (2.80mm)
Win Source Part Number 019983-LQH43MN471J03L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name LQH32PN_N0
Introduction Date August 27, 2007
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH43MN471J03L CAD Model

Description

The LQH43MN471J03L is an active-wirewound inductor from Murata Electronics North America with the following specifications:

  • Current Rating: 80mA
  • Inductance: 470μH
  • Tolerance: ±5%
  • Q @ Freq: 40 @ 796kHz
  • DC Resistance (DCR): 11.8 Ohm Max
  • Operating Temperature Range: -40°C to 85°C
  • Package: Reel - TR
  • Mounting Technology: SMD (SMT)
