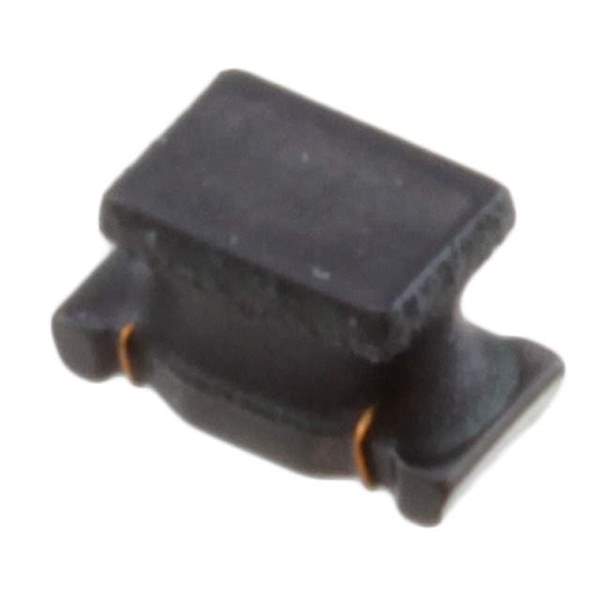

LQH31MN220K03L Real Image
Same model may have multiple batches, images only for reference.

LQH31MN220K03L

Part No LQH31MN220K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Chip Inductor (Chip Coil) for General Use Wire Wound Type LQH31M Series
Datasheet
LQH31MN220K03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH31
Packaging Reel - TR
Type Wirewound
Inductance 22μH
Tolerance ±10%
Current Rating 85mA
Shielding Unshielded
DC Resistance (DCR) 4.03 Ohm Max
Q @ Freq 40 @ 2.5MHz
Frequency - Self Resonant 14MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 1206 (3216 Metric)
Manufacturer Package 1206
Size 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 1204349-LQH31MN220K03L
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Balance
Family Name LQH31MN_03
Introduction Date February 23, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian LQH31MN220K03L CAD Model

Description

The Murata Electronics North America LQH31MN220K03L is a wirewound inductor with a 22μH inductance, and a current rating of 85mA.

  • Manufacturer:Murata Electronics North America
  • Inductance: 22μH
  • Current Rating: 85mA
  • Type: Wirewound, Unshielded
  • Tolerance: ±10%
  • Operating Temperature: -40°C to 85°C
  • Frequency Self-Resonant: 14MHz
  • Q @ Freq: 40 @ 2.5MHz
  • Series: LQH31MN_03
  • Mounting: SMD
  • Package: 1206 (3216 Metric)
  • DCR: 4.03 Ohm Max
  • Test Frequency: 1MHz
  • Popularity: Medium
  • Supply and Demand Status: Balanced
