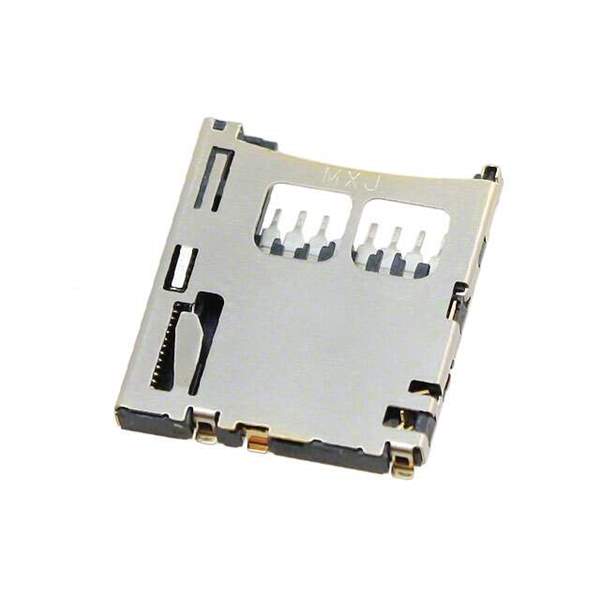

5025700893 Real Image
Same model may have multiple batches, images only for reference.

5025700893

Part No 5025700893
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD PUSH-PUSH R/A / 1.10mm (.043") Pitch microSD Memory Card Connector, Normal Mount SMT, Push- Push Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Reel
Card Type Secure Digital - microSD
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Style Surface Mount, Right Angle
Features Switch
Height Above Board 0.071" (1.80mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 20.0μin (0.51μm)
Manufacturer Pack Quantity 1,300
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801774-5025700893
Ultra Librarian 3D Model Ultra Librarian 5025700893 CAD Model

Description

The 801774-5025700893 from Molex is a surface mount, right-angle connector with a switch feature.

  • Rows: Single
  • Positions: 10 (8 + 2)
  • Connector Type: Connector and Ejector
  • Contact Finish Thickness: 20.0μin (0.51μm)
  • Height Above Board: 0.071" (1.80mm)
  • Card Type: microSD
