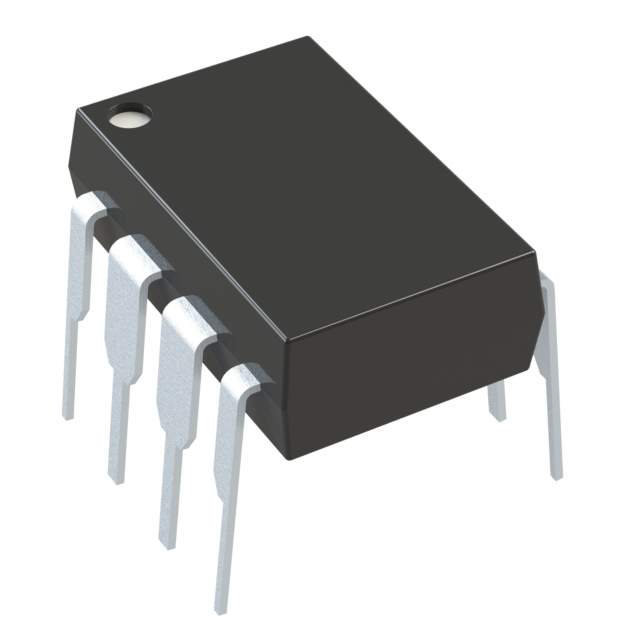

Microchip Technology's PIC12F508-I/P Microcontroller

The PIC12F508-I/P is a high-performance, fully-static, 8-bit microcontroller from Microchip Technology, crafted to deliver a seamless blend of power, efficiency, and versatility in a compact DIP-8 package. This device is part of Microchip's renowned PIC family, which is celebrated for its ease of use and robust performance in a wide array of applications.

With its integrated 768 bytes of flash program memory, the PIC12F508-I/P is an ideal choice for applications requiring a small footprint microcontroller with space for modest program code. Additionally, the device boasts 25 bytes of data RAM and 12 bytes of EEPROM data memory, providing ample storage for data manipulation and parameter storage.

The microcontroller operates on a wide voltage range from 2.0V to 5.5V, making it suitable for various operating environments and ensuring compatibility with both TTL and CMOS logic levels. Furthermore, the PIC12F508-I/P is capable of clock speeds up to 20 MHz, allowing for swift processing and response times, crucial for time-sensitive tasks.

Among its many features, the PIC12F508-I/P includes an on-board 8-bit timer, Watchdog Timer, and an In-Circuit Serial Programming™ (ICSP™) feature for enhanced in-system programming. The ICSP™ capability simplifies the development process, enabling updates and bug fixes to be applied directly to the installed microcontroller, thereby reducing downtime and increasing flexibility in the field.

The device's I/O options include five versatile I/O pins that can be utilized for a range of functions, from simple LED indicators to more complex serial communication interfaces. This versatility, combined with its low power consumption modes, makes the PIC12F508-I/P a preferred choice for battery-operated and power-sensitive applications.

In summary, the PIC12F508-I/P from Microchip Technology is a potent, compact microcontroller that offers an optimal balance of features for designers looking to incorporate reliable and efficient control in their embedded systems. Its robust design, coupled with Microchip's support and resources, ensures that the PIC12F508-I/P will remain a staple in the electronics industry for both prototyping and mass production.
