Product Overview: MCP6004T-I/SL - Microchip Technology

The MCP6004T-I/SL is a high-quality, quad operational amplifier (op-amp) developed by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This op-amp is designed for general-purpose applications and is particularly suitable for analog circuits that require low power consumption, high impedance, and wide bandwidth.

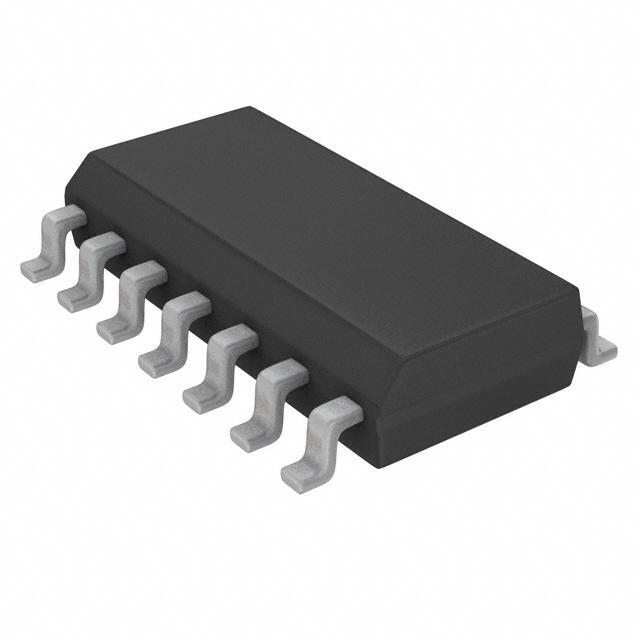

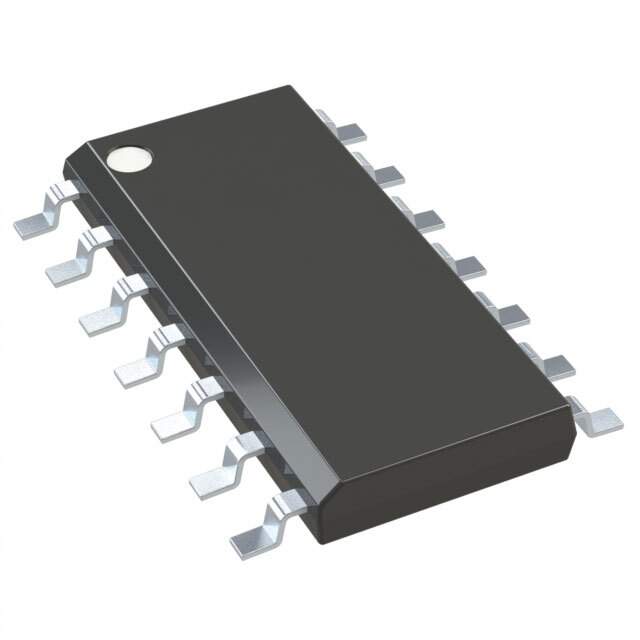

The MCP6004T-I/SL features a standard SOIC-14 package, making it a compact solution for space-constrained applications. With a typical operating voltage range of 1.8V to 5.5V, it is highly versatile and can be used in a variety of electronic systems, including battery-operated devices, portable equipment, and power-sensitive applications.

This device boasts a quiescent current of just 100 µA per amplifier, which is beneficial for power-saving designs. Despite its low power consumption, the MCP6004T-I/SL offers a Gain Bandwidth Product (GBWP) of 1 MHz, allowing for ample bandwidth for many moderate-speed functions.

One of the key features of the MCP6004T-I/SL is its rail-to-rail input and output swing, which provides the maximum possible dynamic range at any supply voltage. This makes it ideal for use in data acquisition systems, analog filters, and many other circuits requiring high input impedance and low input bias current.

Furthermore, the MCP6004T-I/SL has a chip select (CS) option that enables the user to put the output stage into a high-impedance state, which can be useful in multiplexed applications. This feature, combined with its low input bias current of 1 pA, makes it an excellent choice for sensor interfaces and control systems.

Microchip Technology ensures that the MCP6004T-I/SL meets the stringent requirements of the industrial temperature range, operating from -40°C to +125°C. This robust performance makes it suitable for harsh environments and demanding applications.

In summary, the MCP6004T-I/SL from Microchip Technology is a highly reliable and efficient quad operational amplifier that offers a perfect blend of low power consumption, high impedance, and wide bandwidth, making it a versatile component for a broad range of electronic applications.
