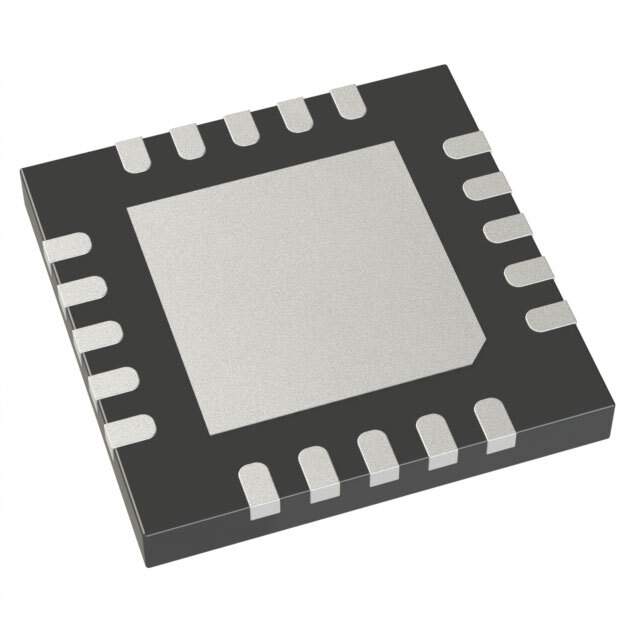

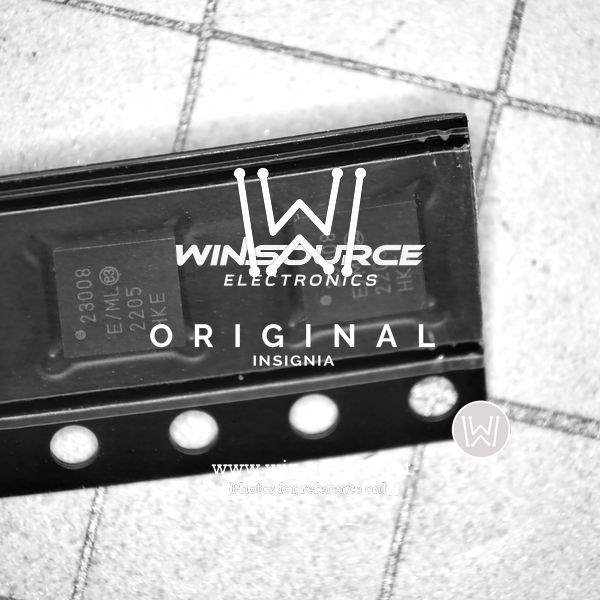

Microchip Technology MCP23008T-E/ML Overview

The MCP23008T-E/ML is a versatile 8-bit I/O expander from Microchip Technology, designed to provide additional input/output (I/O) ports for microcontrollers via the two-wire I²C-compatible serial interface. This compact, surface-mount device is part of Microchip's MCP23008 series and comes in a 16-lead QFN (ML) package, making it suitable for space-constrained applications.

The MCP23008T-E/ML offers a convenient solution for applications that require additional I/Os or where I/O pins on the microcontroller are limited. It is particularly useful in applications such as home automation, industrial control, and automotive systems where the expansion of I/Os can significantly enhance the functionality of the system.

Key Features

• Interface: I²C-compatible serial interface that operates at clock frequencies up to 400 kHz, allowing for easy integration with most microcontrollers.
• Ports: Eight individually addressable I/Os that can be configured as an input or output, providing flexibility in controlling external devices.
• Interrupt Output: An interrupt output pin can be configured to alert the host microcontroller when an input state has changed, improving system responsiveness and efficiency.
• Input Polarity Inversion: The ability to invert the polarity of the input port data without affecting the actual pin state, which simplifies software data management.
• Addressing: Three hardware address pins to configure up to eight devices on the same bus, allowing for up to 64 I/Os on a single I²C bus.
• Operating Voltage: Supports a wide range of supply voltages from 2.7V to 5.5V, accommodating various logic levels and power supplies.
• Extended Temperature Range: The device is rated for operation over the extended temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.

Applications

The MCP23008T-E/ML is ideal for expanding I/O capabilities in a broad array of applications, including but not limited to:

• Remote I/O
• Sensor interfacing
• Power management
• Industrial control systems
• Home automation systems
• Automotive electronics

By integrating the MCP23008T-E/ML into your design, you can enhance the I/O capability of your system with minimal impact on the size and complexity of your PCB layout.
