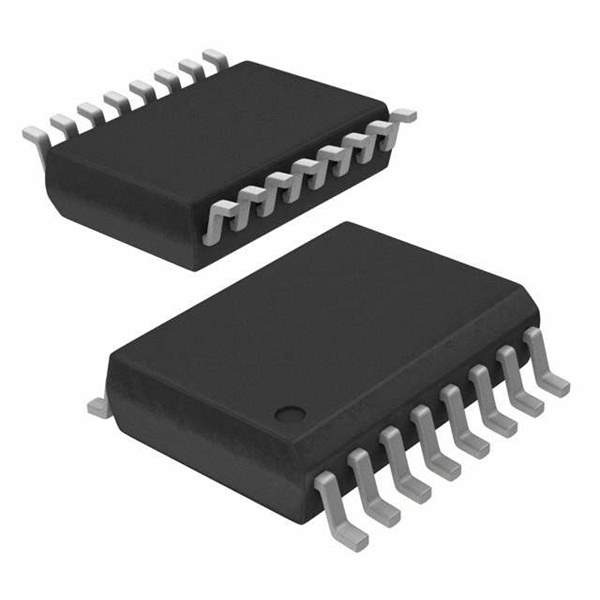

The DS1801S+ from Maxim Integrated is a high-quality, stereo digital volume potentiometer designed for the precise control of audio levels in various consumer electronics. This compact device is ideal for applications such as personal stereos, automotive sound systems, and home theater systems, where space is at a premium and audio performance is critical.

Key Features

• High Resolution: The DS1801S+ provides excellent resolution with its logarithmic taper volume control, which closely mimics the human ear's response to changes in volume, ensuring a smooth and natural adjustment.
• Dual Channel: As a stereo potentiometer, it can control two audio channels simultaneously, maintaining a consistent balance and quality across the spectrum.
• Serial Interface: It features a simple 3-wire serial interface for communication with microcontrollers or other digital systems, allowing for easy integration into a wide range of products.
• Low Power Consumption: Designed with energy efficiency in mind, the DS1801S+ operates on a low supply voltage, making it suitable for battery-powered devices.
• Durable: Housed in a robust 8-pin SOP package, it is built to withstand the rigors of continuous use in a variety of environments.

Technical Specifications

• Supply Voltage Range: 4.5V to 5.5V
• Operating Temperature Range: -40°C to +85°C
• Total Harmonic Distortion (THD): Very low, preserving audio fidelity
• Channel Separation: Excellent, minimizing crosstalk

The DS1801S+ is a testament to Maxim Integrated's commitment to providing innovative, high-performance integrated circuits. Its ease of use, combined with its high-quality audio performance, makes it an excellent choice for manufacturers and hobbyists alike looking to enhance the audio capabilities of their products.

For more detailed information and to view the full datasheet, visit the Maxim Integrated website or contact their support team for technical assistance.
