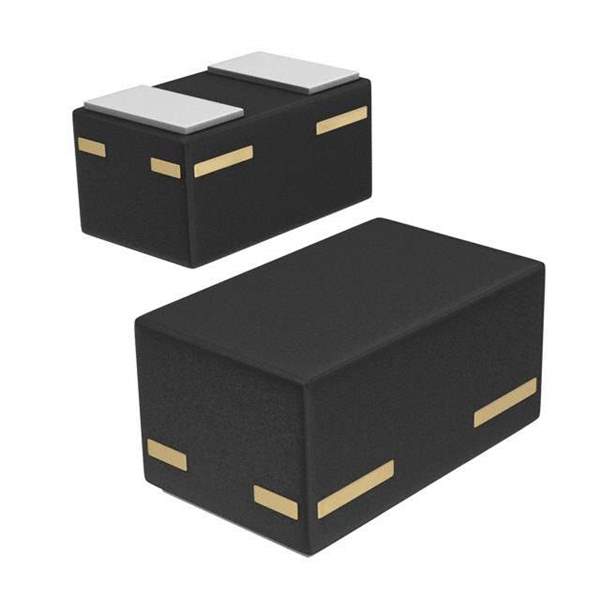

SPHV12-01ETG-C Real Image
Same model may have multiple batches, images only for reference.

SPHV12-01ETG-C

Part No SPHV12-01ETG-C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12V 25V SOD882 / 200W Discrete Bidirectional TVS Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Maximum)
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Maximum) at Ipp 25V
Current - Peak Pulse (10/1000μs) 8A (8/20μs)
Power - Peak Pulse 200W
Power Line Protection No
Applications Automotive
Capacitance at Frequency 30pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package SOD-882
Supplier Device Package SOD-882
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802846-SPHV12-01ETG-C
Ultra Librarian 3D Model Ultra Librarian SPHV12-01ETG-C CAD Model

Description

The SPHV12-01ETG-C zener diode is an automotive type of circuit protection device.

  • Channel: Bidirectional
  • Voltage Reverse Standoff (Typ): 12V (Maximum)
  • Voltage Breakdown (Min): 13.3V
  • Peak Pulse Current: 8A @ 8/20μs
  • Peak Pulse Power: 200W
  • Mounting Type: Surface Mount
  • Package: SOD-882
  • Operating Temperature Range: -40°C ~ 125°C
  • Supply and Demand Status: Balanced
  • Manufacturer: Littelfuse Inc.
  • Manufacturer Pack Quantity: 10,000
  • MSL Level: 1 (Unlimited)
  • Voltage Clamping (Max) @ Ipp: 25V
  • Capacitance @ Frequency: 30pF @ 1MHz
