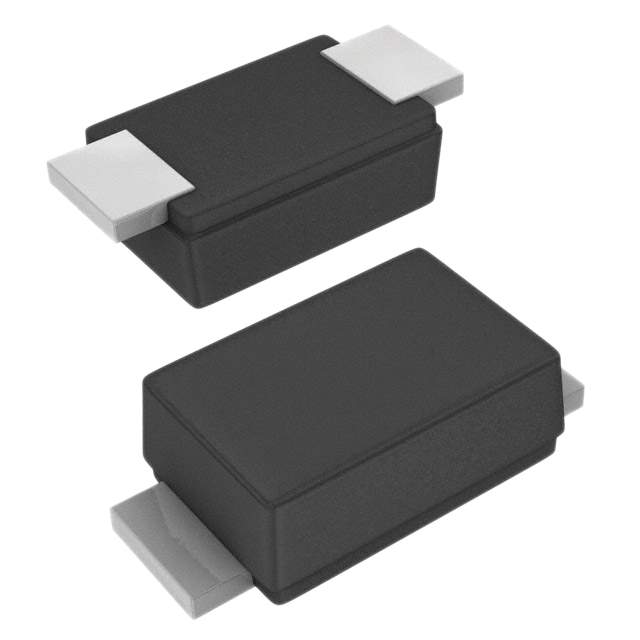

The SMF24A is a Transient Voltage Suppressor (TVS) diode manufactured by Littelfuse Inc. It's designed to protect sensitive electronic components from voltage transients induced by lightning, electrostatic discharge (ESD), and other transient voltage events.

Applications

• I/O interfaces
• VCC bus protection
• Data lines
• Microprocessor protection
• Portable electronics
• Industrial control systems

Features

• Surface Mount Package: Easy to integrate into printed circuit boards (PCBs).
• Low Profile: Minimizes the height of the component on the PCB.
• Fast Response Time: Quickly clamps transient voltages to a safe level.
• High Surge Capability: Withstands high surge currents without damage.
• Unidirectional Protection: Provides protection against positive transient voltages.
• RoHS Compliant: Environmentally friendly.

Benefits

• Protection of Sensitive Components: Prevents damage to electronic components from transient voltages.
• Increased System Reliability: Reduces the risk of system failures due to transient voltage events.
• Extended Product Lifespan: Protects against damage that can shorten the lifespan of electronic devices.
• Reduced Downtime: Prevents system failures that can lead to downtime.
• Cost-Effective Protection: Provides a cost-effective solution for protecting sensitive electronic components.

Technical Specifications

The SMF24A features a standoff voltage of 24V and a breakdown voltage typically around 26.7V to 29.5V. Its clamping voltage, the voltage level to which it limits transient surges, is approximately 41.4V at a specified peak pulse current. It has a surge capability of 200W at 10/1000µs waveform. The SMF24A is available in a small SOD-123FL package. The operating temperature range typically spans from -55°C to +150°C. The fast response time enables it to quickly react to transient events, providing effective protection. This TVS diode is designed for unidirectional applications, meaning it primarily protects against positive voltage transients, making it suitable for various industrial and consumer electronic devices.
