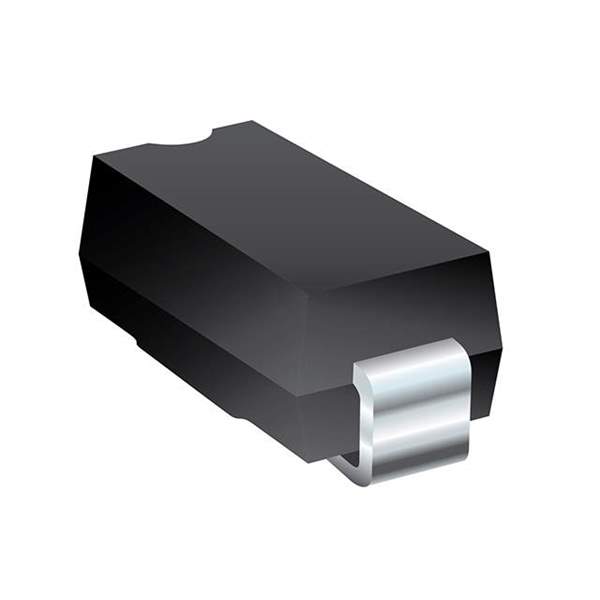

SMCJ13CA Real Image
Same model may have multiple batches, images only for reference.

SMCJ13CA

Part No SMCJ13CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 13VWM 21.5VC SMC
Datasheet
SMCJ13CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 13V
Minimum Breakdown Voltage 14.4V
Max Clamping Voltage 21.5V
Peak Pulse Current(Ippm) 69.8A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 115065-SMCJ13CA
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian SMCJ13CA CAD Model

Description

The Littelfuse Inc. SMCJ13CA Zener type circuit protection component is a bidirectional channel component that is ideal for use in various electronic devices.

  • Stand-off Voltage: 13V
  • Minimum Breakdown Voltage: 14.4V
  • Max Clamping Voltage: 21.5V
  • Peak Pulse Current(Ippm): 69.8A
  • Power Dissipation: 1500W (1.5kW)
  • Applications: Computers and computer peripherals, communications and networking, consumer electronics, and industrial applications
