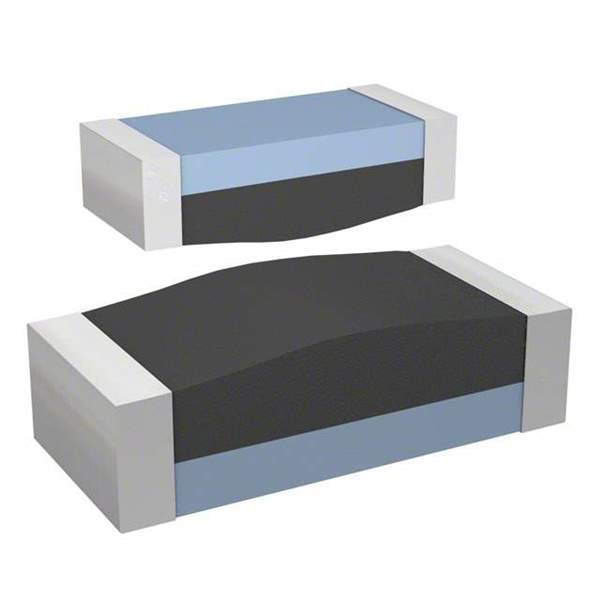

PESD0402-140 Real Image
Same model may have multiple batches, images only for reference.

PESD0402-140

Part No PESD0402-140
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode Polymer Bi-Dir 14V Automotive 2-Pin Case 0402(1006Metric) T/R / TVS DIODE 14VWM 40VC 0402
Datasheet
PESD0402-140 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 14V (Max)
Max Clamping Voltage 40V
Applications Ethernet, HDMI
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402
Win Source Part Number 1087507-PESD0402-140
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, Consumer Electronics, Portable Devices, RF Communications, Industrial, Multimedia
Family Name PESD0402-140
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PESD0402-140 CAD Model

Description

The Littelfuse Inc. PESD0402-140 is a zener type of circuit protection.

  • Applications: Ethernet and HDMI
  • Mounting: SMD (SMT)
  • STAND-OFF Voltage: 14V (Max)
  • Clamping Voltage (Max): 40V
  • Temperature Range: -55°C to 125°C (TJ)
  • Family: PESD0402-140
  • Status: Active
  • Halogen-Free: Yes
  • Popularity: High
  • Compliance: ECCN
  • Availability: Estimated until 2026
