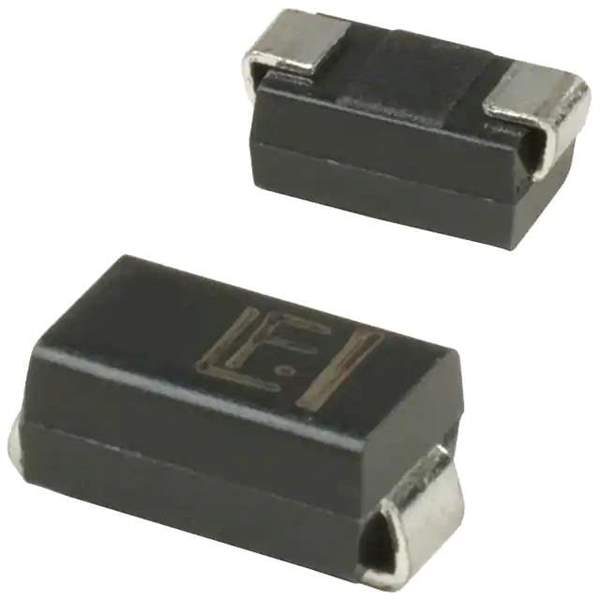

P4SMA33CA Real Image
Same model may have multiple batches, images only for reference.

P4SMA33CA

Part No P4SMA33CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 28.2VWM 45.7VC DO214AC / 45.7V Clamp 9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Datasheet
P4SMA33CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series P4SMA
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28.2V
Voltage - Breakdown (Min) 31.4V
Voltage - Clamping (Max) @ Ipp 45.7V
Current - Peak Pulse (10/1000µs) 9A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 651766-P4SMA33CA
Ultra Librarian 3D Model Ultra Librarian P4SMA33CA CAD Model

Description

The P4SMA33CA is a bidirectional transient voltage suppressor (TVS) diode designed for general-purpose applications.

  • Series: P4SMA
  • Reverse Standoff Voltage: 28.2V
  • Breakdown Voltage: 31.4V
  • Peak Pulse Power Rating: 400W
  • Mounting Type: Surface Mount
  • Package: DO-214AC (SMA)
  • Manufacturer: Littelfuse Inc.
  • Status: Active
