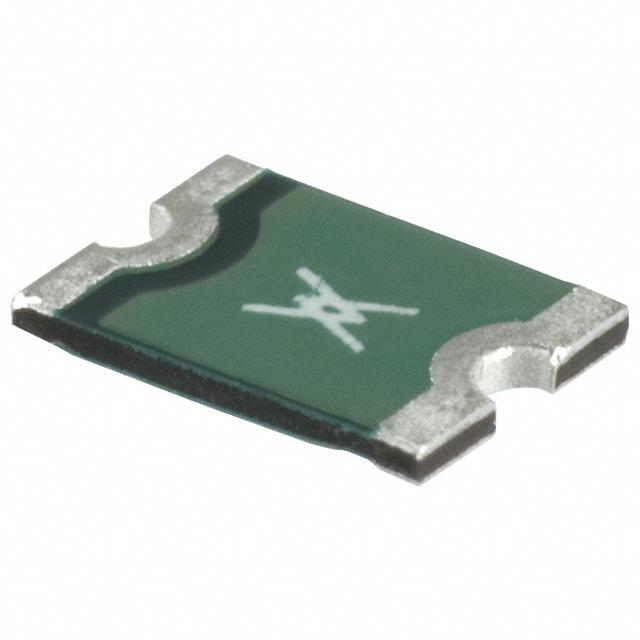

MINISMDC014F-2 Littelfuse Inc. MINISMDC014F-2 real image3276 MINISMDC014F-2 real image3277 MINISMDC014F-2 label picture 2 MINISMDC014F-2 label picture MINISMDC014F-2 real image
MINISMDC014F-2 Littelfuse Inc. MINISMDC014F-2 real image3276 MINISMDC014F-2 real image3277 MINISMDC014F-2 label picture 2 MINISMDC014F-2 label picture MINISMDC014F-2 real image
Same model may have multiple batches, images only for reference.

MINISMDC014F-2

Part No MINISMDC014F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .14A RESET FUSE SMD / PTC Resettable Fuse 0.14A(hold) 0.28A(trip) 60VDC 10A 0.75W 0.008s 1.5Ohm SMD Solder Pad 4.73 X 3.41 X 0.89mm T/R Automotive
Datasheet
MINISMDC014F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Max) 140mA
Current - Trip (It) 280mA
Time to Trip 8ms
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 6 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.035" (0.89mm)
Approvals CSA, TUV, UL
Win Source Part Number 023353-MINISMDC014F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Family Name MINISMDC
Introduction Date August 10, 2016
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MINISMDC014F-2 CAD Model

Description

The Littelfuse Inc. MINISMDC014F-2 is a polymeric type circuit protection component manufactured by Littelfuse Inc.

  • Win Source part number: 023353-MINISMDC014F-2
  • Applications: Safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications.
