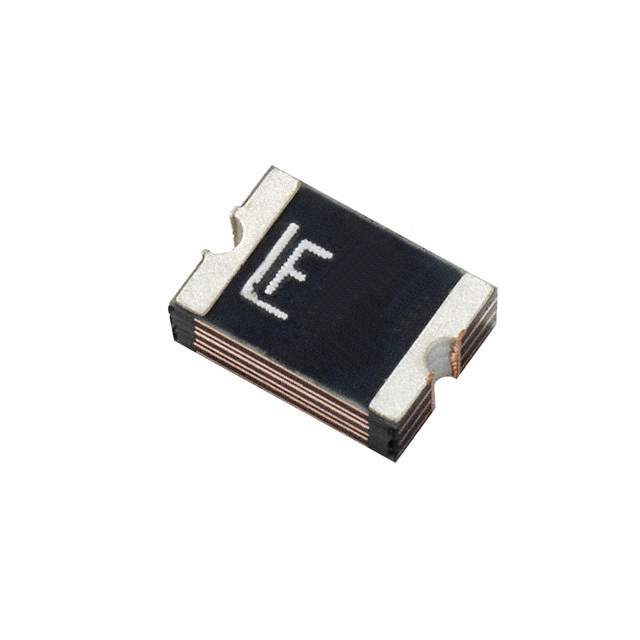

1812L010DR Real Image 1812L010DR label picture
1812L010DR Real Image 1812L010DR label picture
Same model may have multiple batches, images only for reference.

1812L010DR

Part No 1812L010DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 30V 100MA 1812L
Datasheet
1812L010DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series POLY-FUSE, 1812L
Packaging Reel package
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Maximum) 100mA
Current - Trip (It) 300mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Minimum) 1.6 Ohm
Resistance - Post Trip (R1) (Maximum) 15 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Maximum) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 760674-1812L010DR
Popularity Medium
Supply and Demand Status Balance
Family Name 1812L
Introduction Date October 10, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 1812L010DR CAD Model

Description

The Littelfuse Inc. POLY-FUSE is a polymeric type circuit protection device designed to protect electronic components from overcurrent.

  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Current Trip Rating: 300mA
  • Time to Trip: 1.5s
  • Package: 1812
  • Mounting: Surface-Mount
  • Approvals: cURus, TUV
  • Resistance: 1.6 Ohm
  • Post-Trip Resistance: 15 Ohm
  • Halogen-Free: Yes
  • Compliance: Yes
  • Made In: China
  • Estimated EOL Date: 2025
