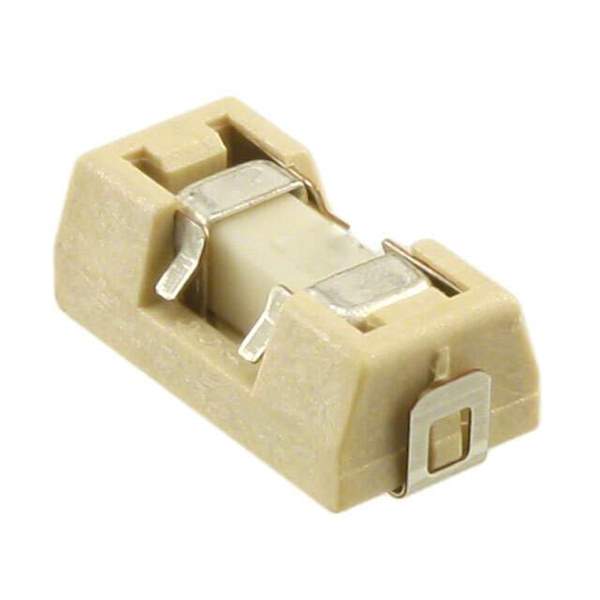

0154.500DR Real Image
Same model may have multiple batches, images only for reference.

0154.500DR

Part No 0154.500DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 500MA 125VAC/VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500mA
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block with Holder
Mounting Style Holder, Surface Mount
Breaking Capacity at Rated Voltage 50A
Melting I2t 0.0795
Approvals UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
DC Cold Resistance 0.42 Ohms
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807610-0154.500DR
Ultra Librarian 3D Model Ultra Librarian 0154.500DR CAD Model

Description

The Littelfuse Inc. 0154.500DR is a surface mount holder fuse.

  • Response Time: fast blow
  • Voltage Rating: 125V AC/125V DC
  • Current Rating: 500mA
  • Breaking Capacity: 50A
  • DC Cold Resistance: 0.42 Ohms
  • Packaging: 2-SMD, square end block with a holder
  • Dimension: 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
  • Approval: UL
  • Popularity: medium
  • Supply and Demand: balanced
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
