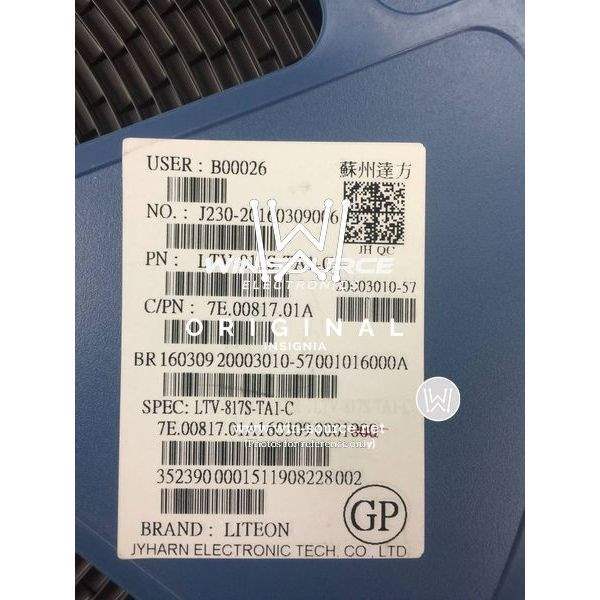

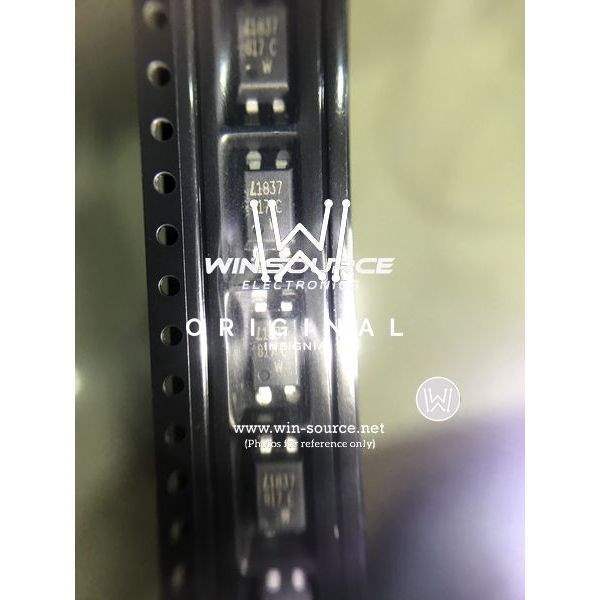

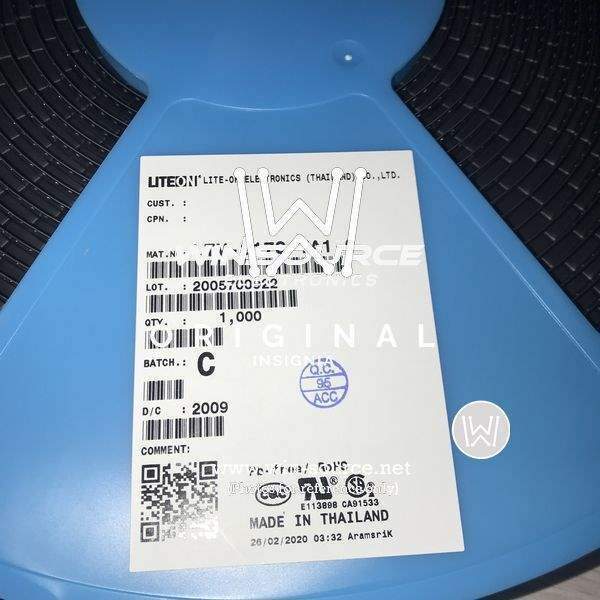

LTV-817S-TA1-C label picture LTV-817S-TA1-C label picture 3 LTV-817S-TA1-C real image LTV-817S-TA1-C label picture 2
LTV-817S-TA1-C label picture LTV-817S-TA1-C label picture 3 LTV-817S-TA1-C real image LTV-817S-TA1-C label picture 2
Same model may have multiple batches, images only for reference.

LTV-817S-TA1-C

Part No LTV-817S-TA1-C
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 095624-LTV-817S-TA1-C
Family Name LTV-817S-TA1
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LTV-817S-TA1-C CAD Model

Description

The Lite-On Inc. LTV-817S-TA1-C is a single channel DC input transistor output optocoupler.

  • Minimum DC Current Transfer Ratio: 200% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Maximum Output Voltage: 35V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Package: 4-SMD
  • Common Applications: Use in isolators
  • Popularity: High
  • Supply and Demand: Sufficient
