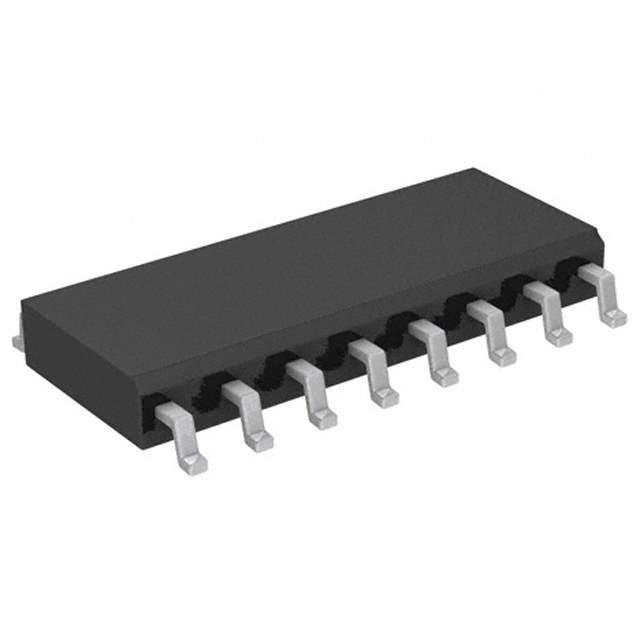

LTV-247 Lite-On Inc. LTV-247 Real Image LTV-247 real image2197 LTV-247 real image2198 LTV-247 Real Image1 LTV-247 Real Image2 LTV-247 Real Image3 LTV-247 Real Image4 LTV-247 Real Image5 LTV-247 Real Image6
LTV-247 Lite-On Inc. LTV-247 Real Image LTV-247 real image2197 LTV-247 real image2198 LTV-247 Real Image1 LTV-247 Real Image2 LTV-247 Real Image3 LTV-247 Real Image4 LTV-247 Real Image5 LTV-247 Real Image6

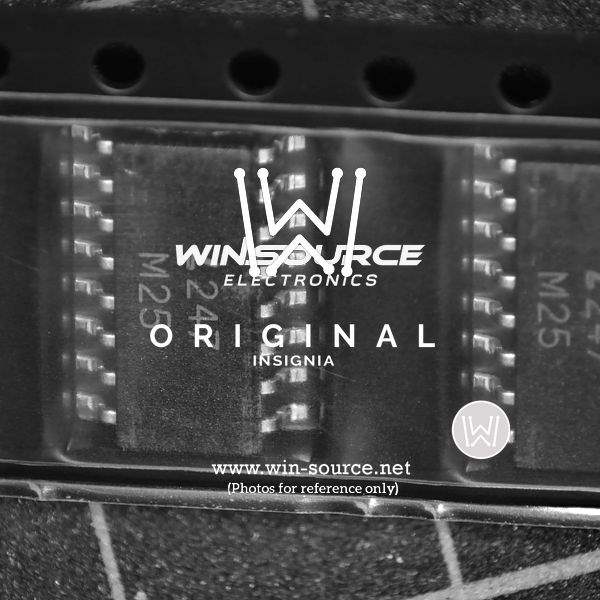

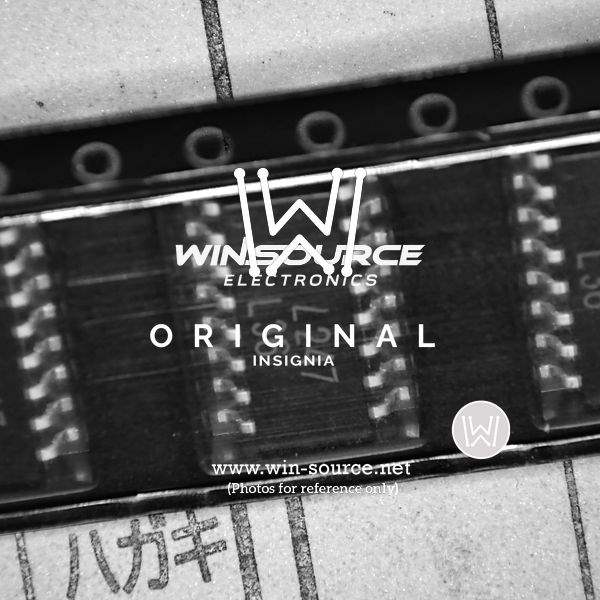

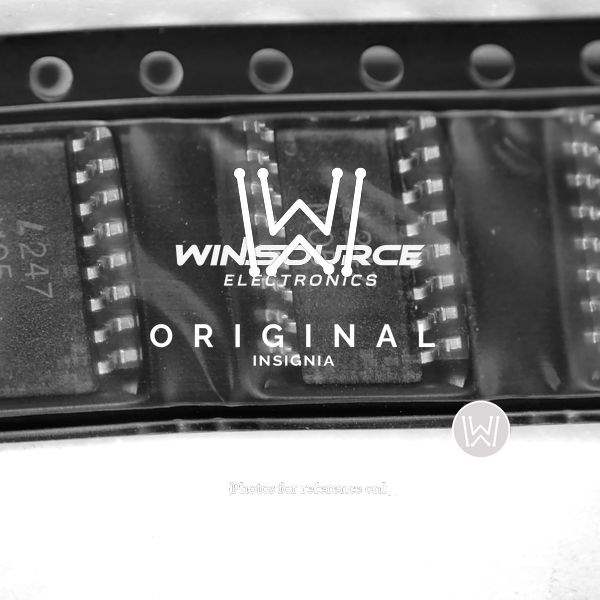

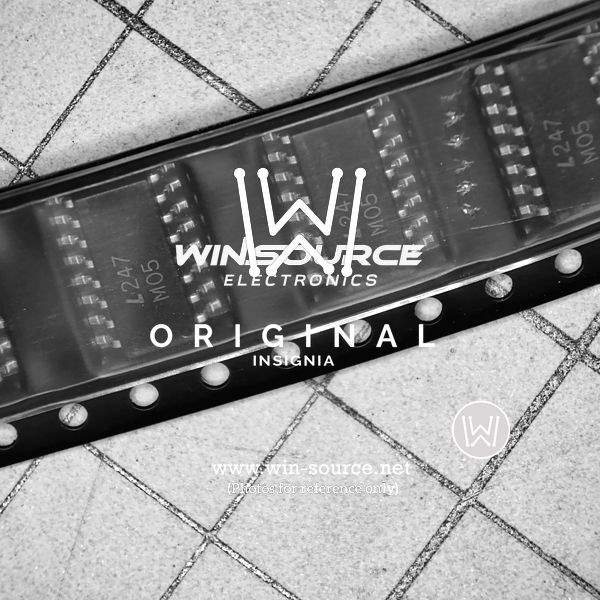

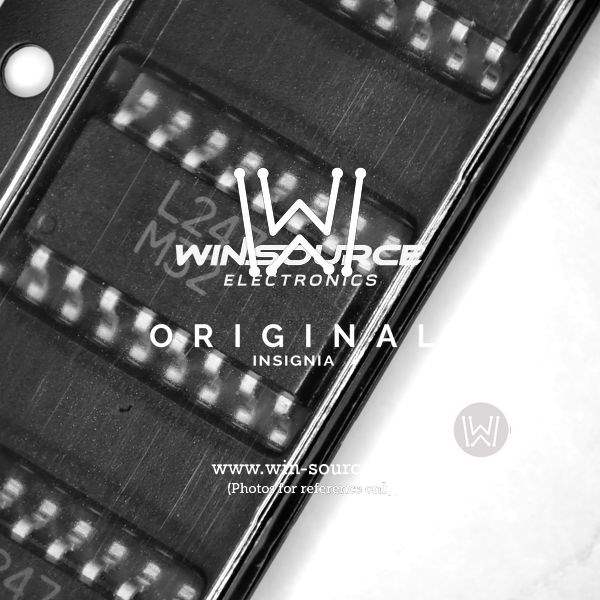

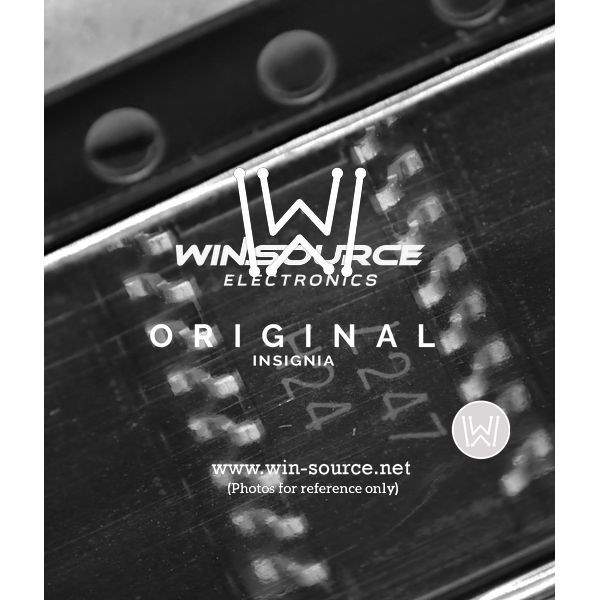

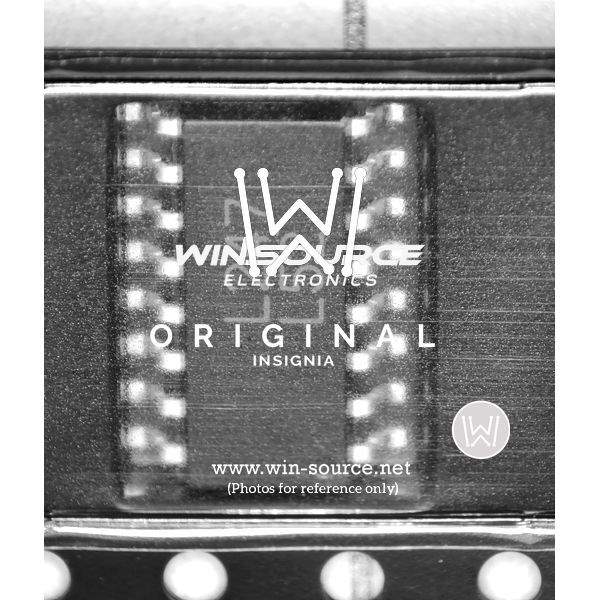

Same model may have multiple batches, images only for reference.

LTV-247

Part No LTV-247
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV 4CH TRANS 16SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 4
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Switching Turn-On and Turn-Off Time 3μs, 3μs
Rise and Fall Time 2μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 16-SO
Win Source Part Number 206833-LTV-247
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian LTV-247 CAD Model

Description

The LTV-247 is a Lite-On Inc. electronic component. It is an isolator with four channels and a transistor output type. The component is mounted using surface mount technology (SMT) and is packaged on a reel. It has a forward voltage of 1.2V and an isolation voltage of 3750Vrms. The manufacturer part number is 206833.
