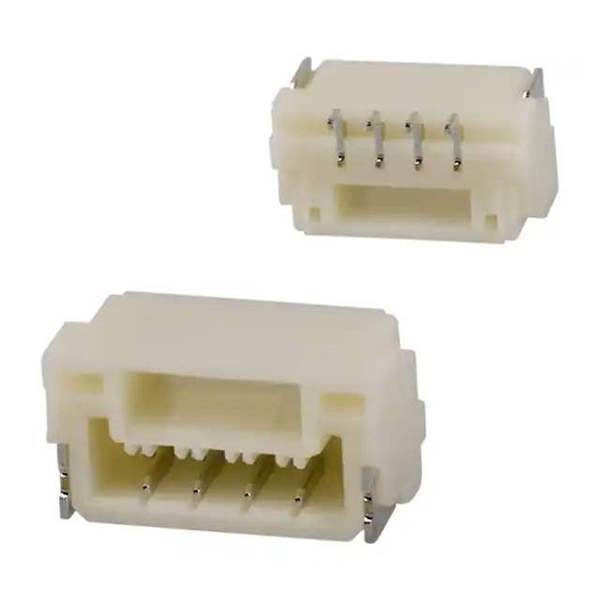

SM04B-GHS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM04B-GHS-TB(LF)(SN)

Part No SM04B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1.25MM / Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series GH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167" (4.25mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number SM04B-GH
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 741809-SM04B-GHS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM04B-GHS-TB(LF)(SN) CAD Model

Description

The 741809-SM04B-GHS-TB(LF)(SN) is a male pin header connector from the GH series.

  • Positions: 4
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Phosphor Bronze
  • Packaging: Tape & Reel
  • Pieces per Package: 2,500
  • Insulation Material: Polyamide (PA9T) and Nylon 9T
  • Pitch: 0.049" (1.25mm)
  • Board-to-Cable/Wire: Yes
  • Temperature Range: -25°C to 85°C
  • Product Status: Active
  • Manufacturer: JST Sales America Inc.
