Same model may have multiple batches, images only for reference.

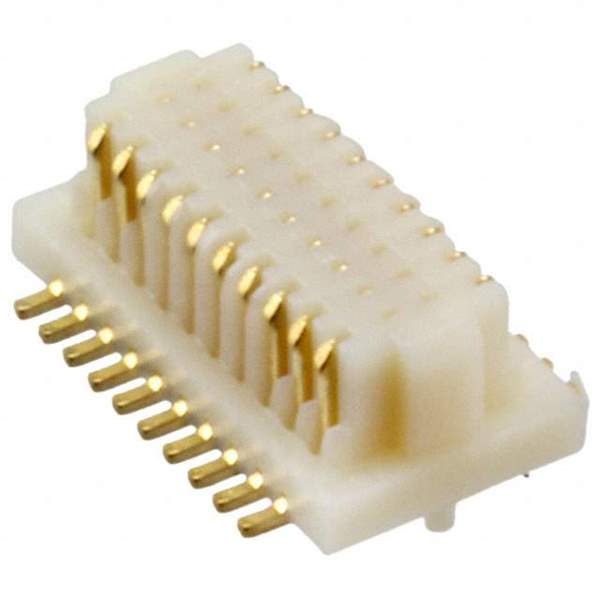

20R-JMCS-G-B-TF(S)

Name: 20R-JMCS-G-B-TF(S)
Brand: JST Sales America Inc.
SKU: 1352116
Availability: InStock
Rating: 4.94 (5 reviews)

Get a Quote

Part No	20R-JMCS-G-B-TF(S)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JST Sales America Inc.
Series	JMC
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Height Above Board	0.091" (2.30mm)
Base Product Number	20R-JMCS
Standard Package	2,500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352116-20R-JMCS-G-B-TF(S)
Ultra Librarian 3D Model	Ultra Librarian 20R-JMCS-G-B-TF(S) CAD Model

Alternative Products

Description

The JMC series mezzanine connector is a receptacle type connector with a center strip contact.

Connector Type: Receptacle
Contact Type: Center Strip
Positions: 20
Pitch: 0.50mm
Rows: Double
Contact Finish: Gold
Features: Board Guide
Mounting Type: Surface Mount
Height Above Board: 2.30mm
Package: Tape & Reel
Standard Package: 2,500
Status: Obsolete
